Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Electrical & power control / Charging System / Service data and specifications (SDS)

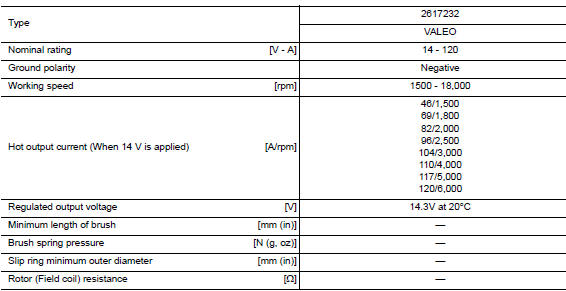

Generator

Generator

Removal and installation
GENERATOR Exploded View REMOVAL Cylinder head Generator bracket Washer  Generator Water pump Cylinder block Removal and Installation REMOVAL  Disconnect negativ ...
