Nissan Rogue Service Manual: Ground

Ground Distribution

MAIN HARNESS

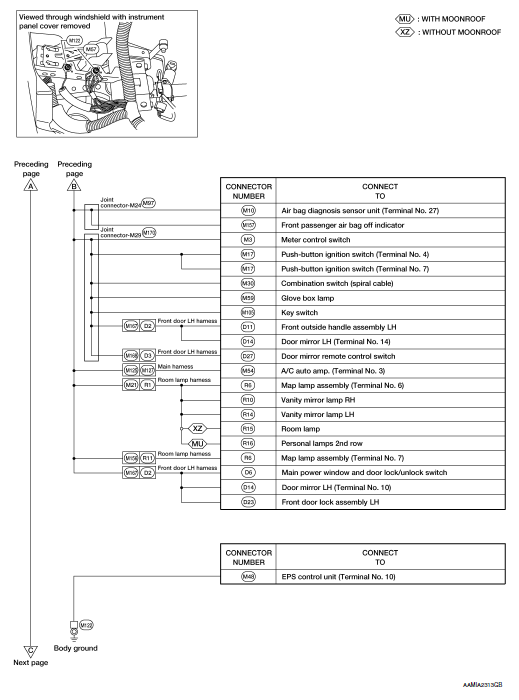

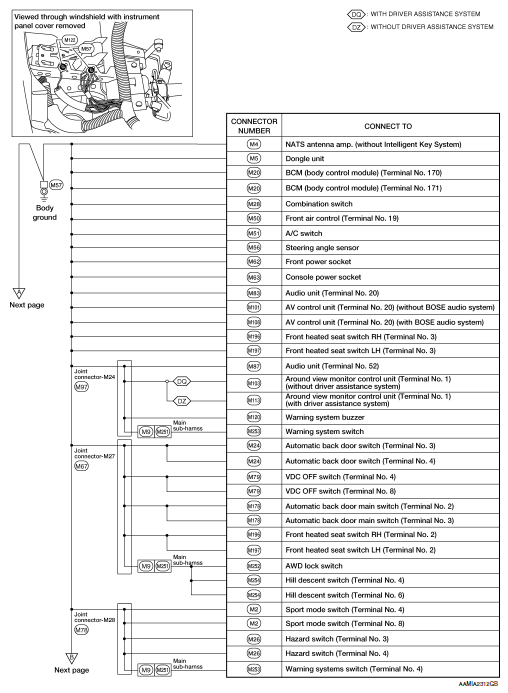

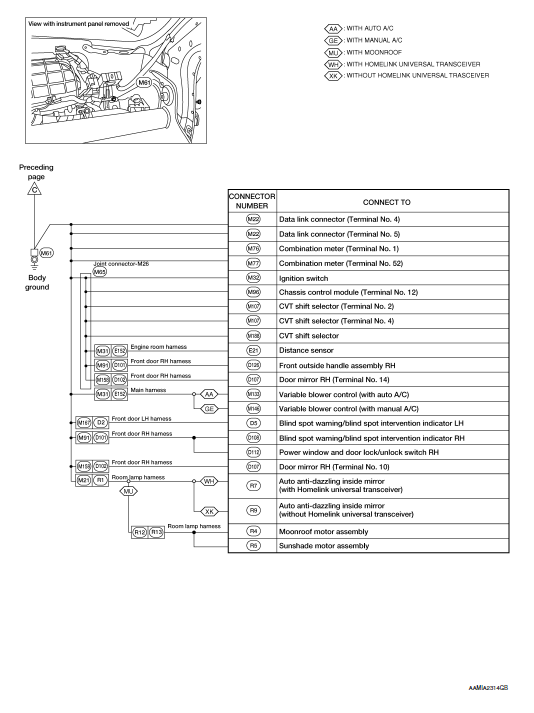

Main harness

Main harness

Main harness

ENGINE ROOM HARNESS

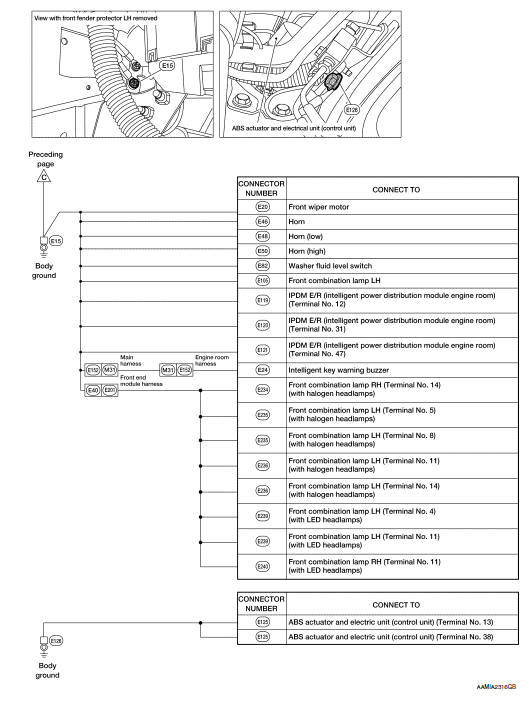

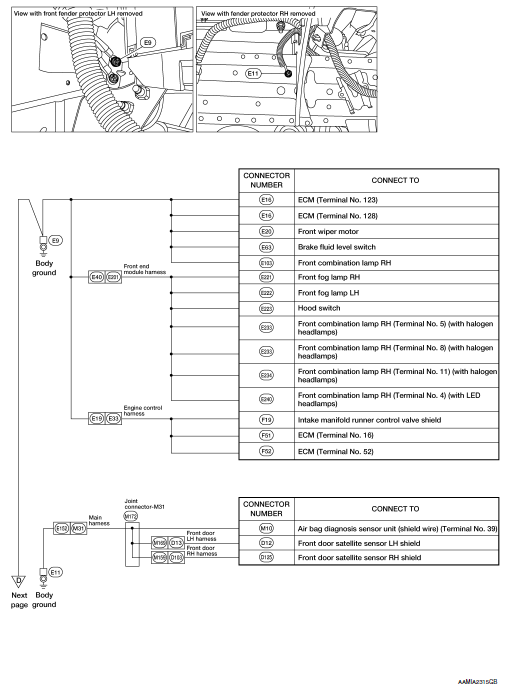

Engine room harness

Engine room harness

ENGINE CONTROL HARNESS

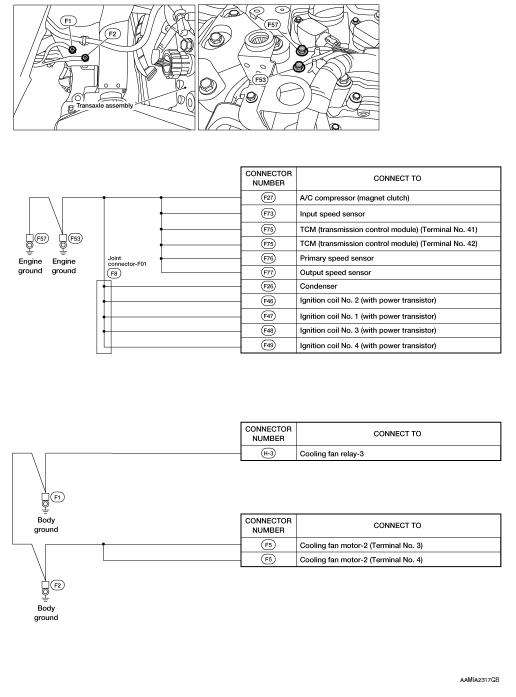

Engine control harness

BODY HARNESS

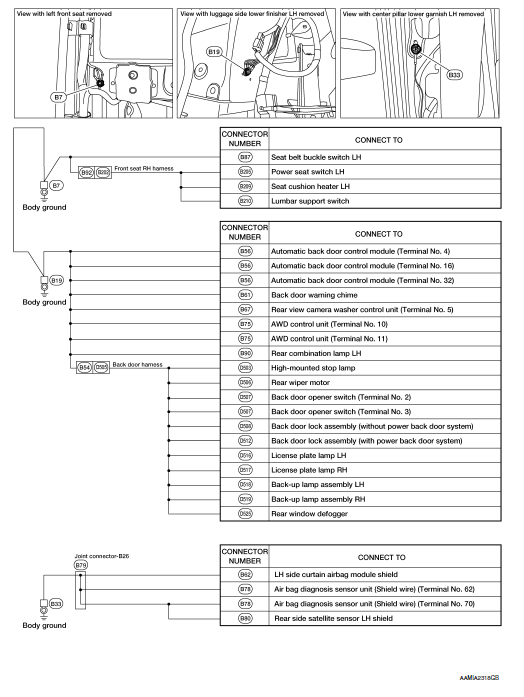

Body harness

BODY NO. 2 HARNESS

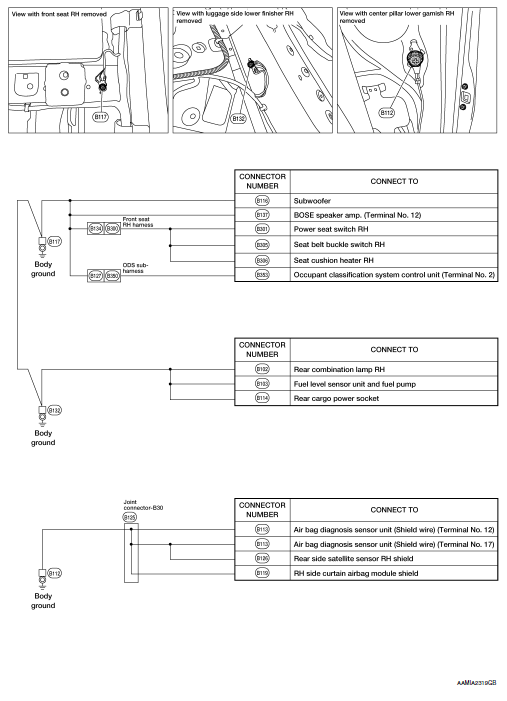

Body no. 2 Harness
