Nissan Rogue Service Manual: Wiring diagram

CHARGING SYSTEM

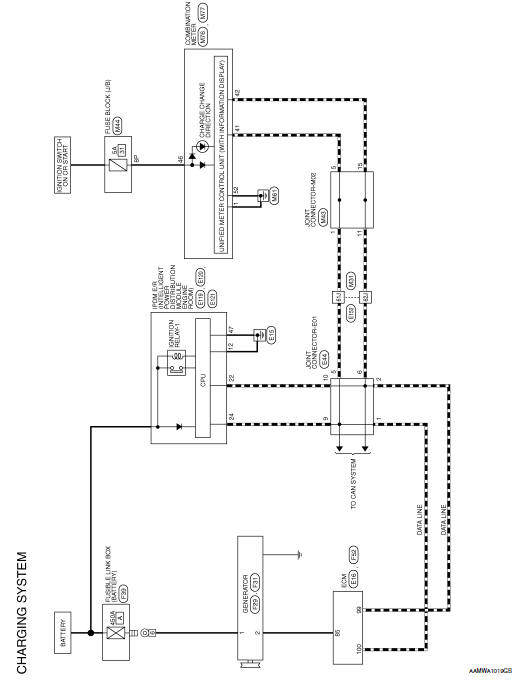

Wiring Diagram

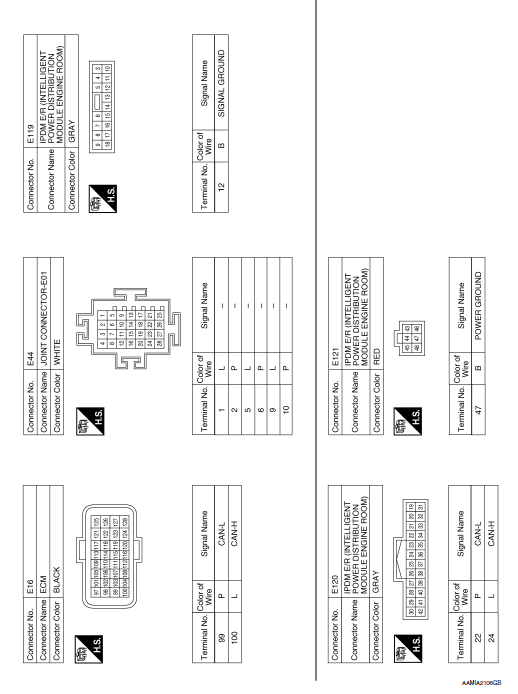

Wiring Diagram

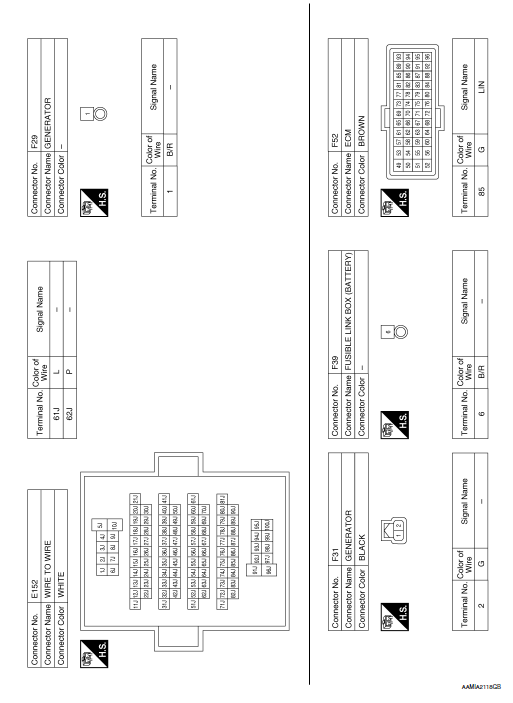

Wiring Diagram

Wiring Diagram

Wiring Diagram

System
CHARGING SYSTEM CHARGING SYSTEM : System Description The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is cont ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow (With EXP-800 NI or GR8-1200 NI) CHARGING SYSTEM DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI To test the charging system, use the following special service tool ...
