Nissan Rogue Service Manual: Service data and specifications (SDS)
Steering Wheel

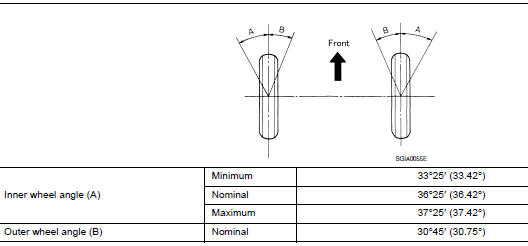

Steering Angle
Steering Column
STEERING COLUMN LENGTH
STEERING COLUMN ROTATING TORQUE

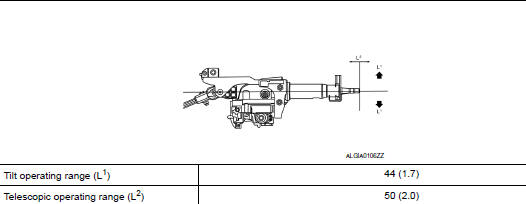

TILT MECHANISM OPERATING RANGE
Steering Gear
STEERING OUTER SOCKET AND INNER SOCKET

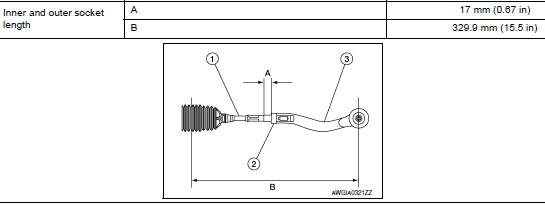

INNER AND OUTER SOCKET LENGTH

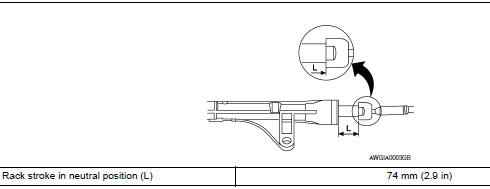

RACK STROKE
RACK SLIDING FORCE
Unit disassembly and assembly
STEERING GEAR AND LINKAGE
Exploded View
DISASSEMBLY AND ASSEMBLY
Steering gear
Inner boot clamp
Boot
Outer boot clamp
Outer socket
Disassembly and Assem ...
