CAN SYSTEM

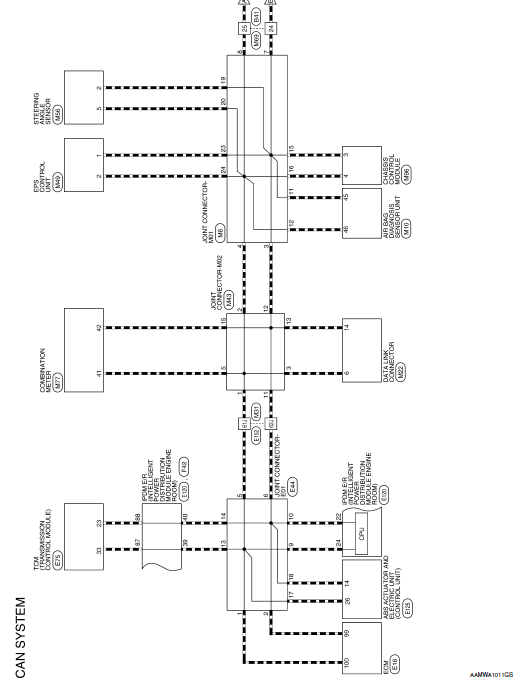

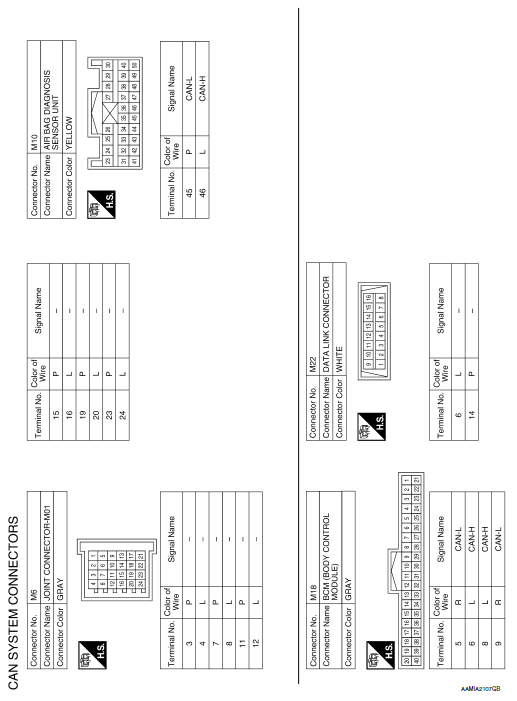

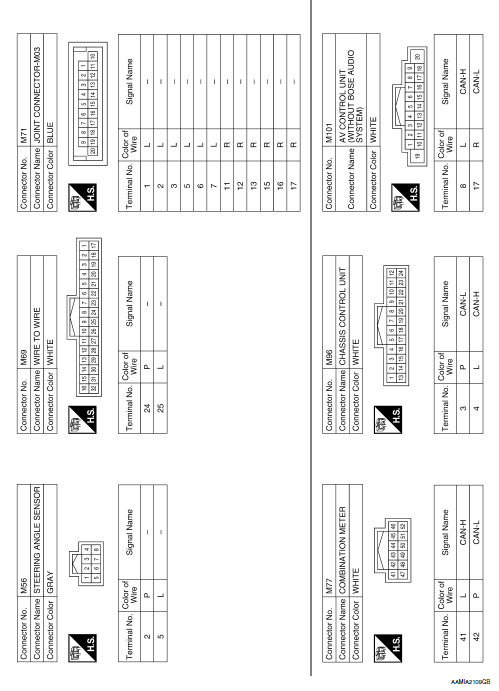

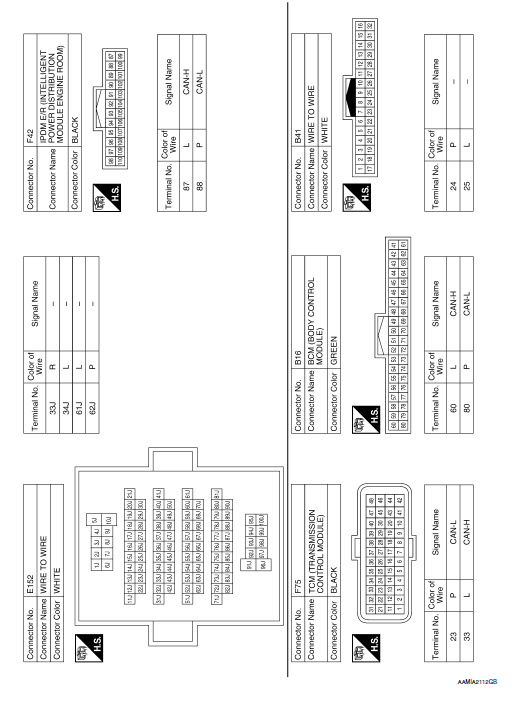

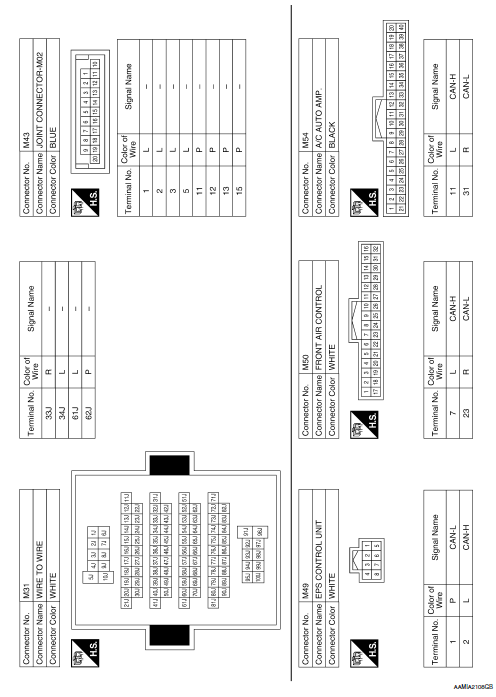

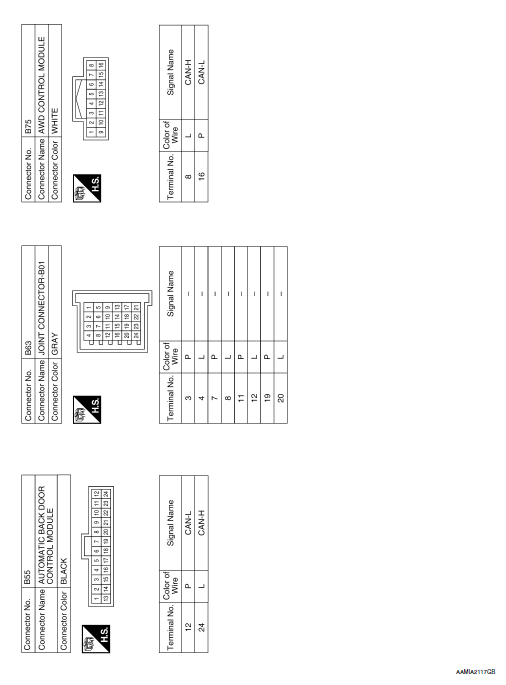

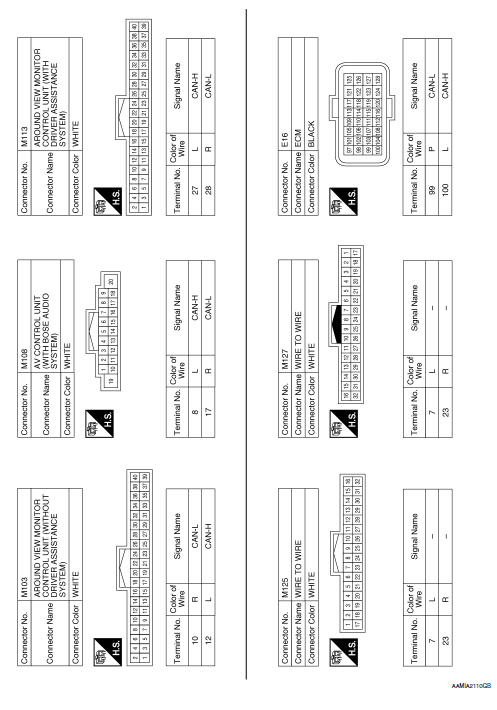

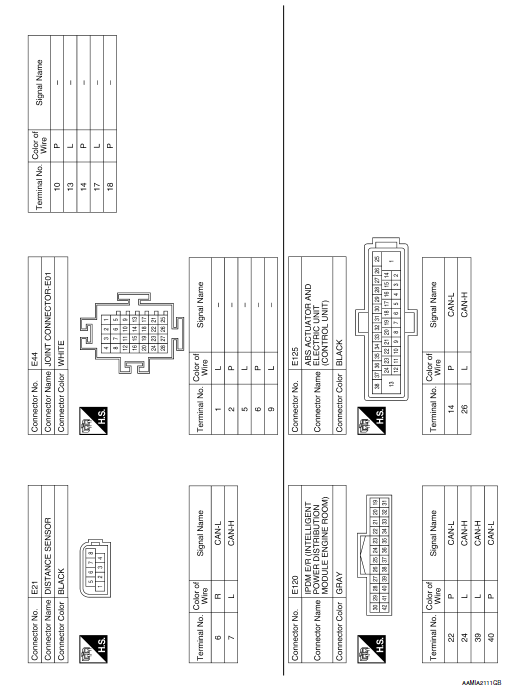

Wiring Diagram - CAN SYSTEM -









System description
Basic inspectionP0500 VSS
Description
ECM receives vehicle speed signals from two different paths via CAN
communication line: One is from the
ABS actuator and electric unit (control unit) via the combination unit and the
other is from TCM.
DTC Description
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
...
Power supply and ground circuit
BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM) : Diagnosis
Procedure
Regarding Wiring Diagram information, refer to BCS-50, "Wiring Diagram".
1. CHECK FUSE
Check that the following fuse is not blown.
Is the fuse blo ...
Operation
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function
SWITCHES AND INDICATORS
A On the combination meter
B On the steering wheel
1 CRUISE indicator
2 SET indicator
3 CANCEL switch
4 ACCEL/RES switch
5 COAST/SET switch
6 ASCD MAIN sw ...
