Nissan Rogue Owners Manual: Difference between predictive and actual distances

Nissan Rogue Owners Manual / Monitor, climate, audio, phone and voice recognition systems / Around View® Monitor (if so equipped) / Difference between predictive and actual distances

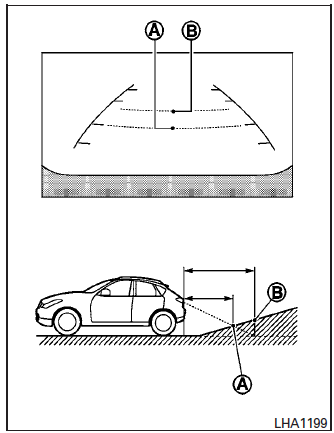

Backing up on a steep uphill

When backing up the vehicle up a hill, the distance guide lines and the vehicle width guide lines are shown closer than the actual distance.

For example, the display shows 3 ft (1.0 m) to the place A , but the actual 3 ft (1.0 m) distance on the hill is the place B . Note that any object on the hill is further than it appears on the monitor.

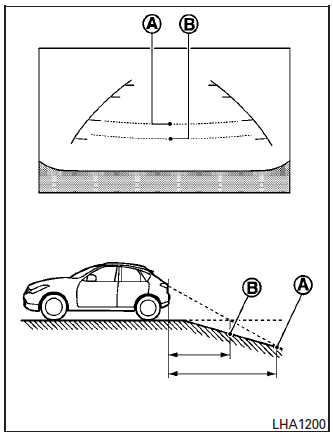

Backing up on a steep downhill

When backing up the vehicle down a hill, the distance guide lines and the vehicle width guide lines are shown farther than the actual distance.

For example, the display shows 3 ft (1.0 m) to the place A , but the actual 3 ft (1.0 m) distance on the hill is the place B . Note that any object on the hill is closer than it appears on the monitor

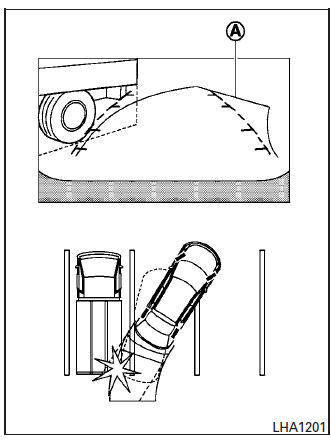

Backing up near a projecting object

The predicted course lines A do not touch the object in the display. However, the vehicle may hit the object if it projects over the actual backing up course.

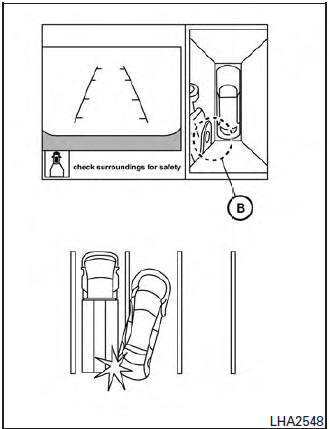

Backing up near a projecting object

There may be a small distance visible between the vehicle and the object in the bird-eye view on the display B .

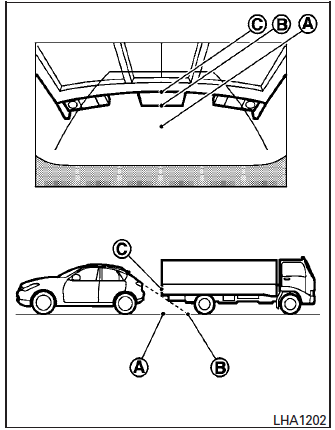

Backing up behind a projecting object

The position C is shown farther than the position B in the display. However, the position C is actually at the same distance as the position A .

The vehicle may hit the object when backing up to the position A if the object projects over the actual backing up course.

Available views

WARNING The distance guide line and the vehicle width line should be used as a reference only when the vehicle is on a paved, level surface. The distance viewed on the ...

How to switch the display

With the ignition switch in the ON position, press the CAMERA button or move the shift lever to the R (Reverse) position to operate the Around View Monitor. The Around View Monitor displays diff ...
