DTC Description

DTC DETECTION LOGIC

DTC	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
P0848	FLUID PRESS SEN/SW B (Transmission Fluid Pressure Sensor/Switch B Circuit Low)	When all of the following conditions are satisfied and this state is maintained for 5 seconds: CVT fluid temperature: More than −20°C (−4°F) TCM power supply voltage: More than 11 V Instruction secondary pressure: 5.7 MPa or less Secondary pressure sensor voltage: 4.7 V or more

POSSIBLE CAUSE

Harness or connector (Secondary pressure sensor circuit is shorted to power supply)
Secondary pressure sensor
Control valve assembly

FAIL-SAFE

Not changed from normal driving

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, the ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.CHECK DTC DETECTION

With CONSULT

Start the engine.
Select “Data Monitor” in “TRANSMISSION”.
Select “FLUID TEMP”.
Maintain the following conditions for 10 seconds or more.

FLUID TEMP : More than −20°C (−4°F)

Check the first trip DTC.

With GST

Start the engine and wait for at least 10 seconds.
CAUTION: When the ambient temperature is less than −20°C (−4°F) and the engine is cold, warm up the engine for approximately 5 minutes.
Check the first trip DTC.

Is “P0848”detected? YES >> Go to TM-148, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

1.CHECK TCM INPUT SIGNALS

Turn ignition switch OFF.
Start the engine.
Check voltage between TCM harness connector terminals.

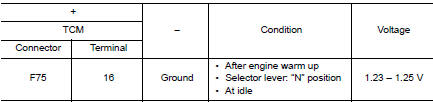

Check TCM input signals

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 2.

2.CHECK SECONDARY PRESSURE SENSOR POWER CIRCUIT

Turn ignition switch OFF.
Connect TCM connector.
Disconnect CVT unit connector.
Check voltage between CVT unit harness connector terminal and ground.

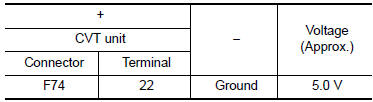

Check secondary pressure sensor power circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace malfunctioning parts.

3.CHECK SECONDARY PRESSURE SENSOR SIGNAL CIRCUIT

eck voltage between CVT unit harness connector terminal and ground.

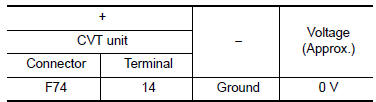

Check secondary pressure sensor signal circuit

Is the inspection result normal? YES >> There is malfunction of secondary pressure sensor. Replace transaxle assembly. Refer to TM- 220, "Removal and Installation".

NO >> Repair or replace malfunctioning parts.
