Nissan Rogue Service Manual: IPDM E/R (intelligent power distribution module engine room)

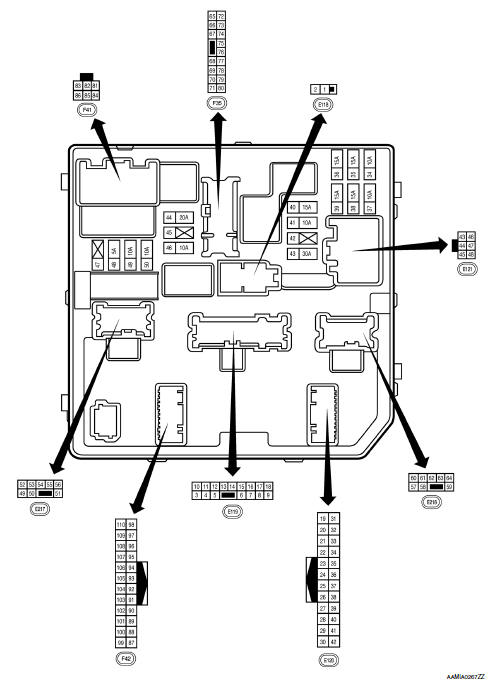

IPDM E/R Terminal Arrangement

IPDM E/R Terminal Arrangement

Fuse, fusible link and relay box
Terminal Arrangement FUSE, FUSIBLE LINK AND RELAY BOX 1 FUSE, FUSIBLE LINK AND RELAY BOX 2 RELAY BOX ...
