Nissan Rogue Service Manual: Electrical units location

Electrical Units Location

ENGINE COMPARTMENT

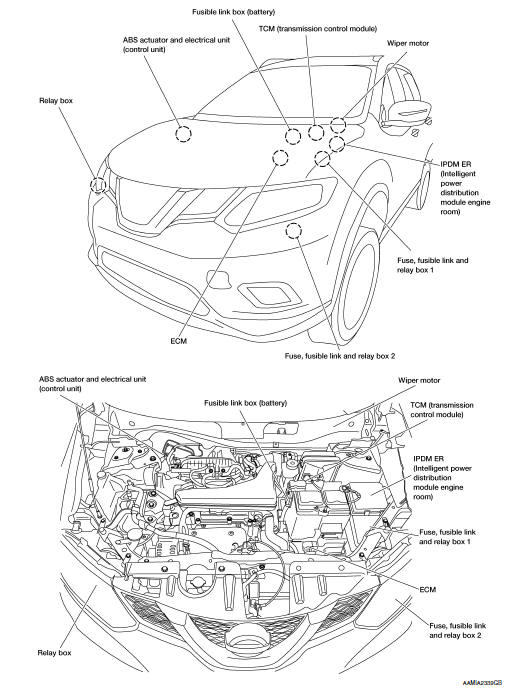

Engine compartment

PASSENGER COMPARTMENT

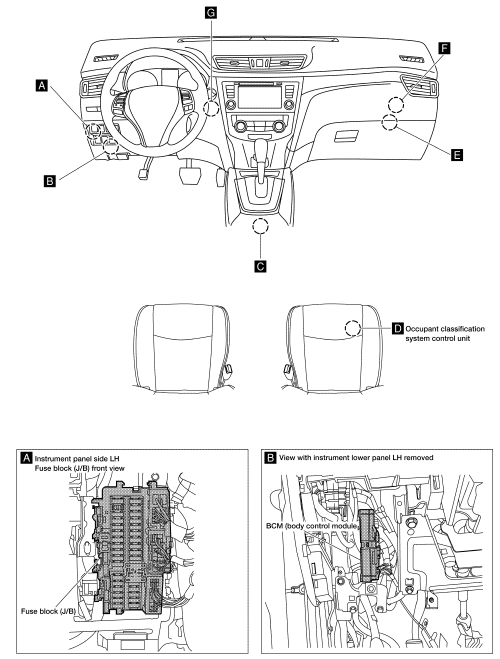

Passenger compartment

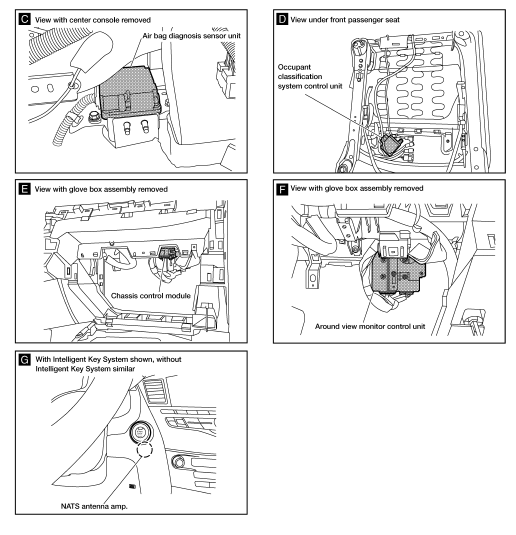

Passenger compartment

Harness
Harness Layout HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to help locate connectors on the drawings:  Main Harness and Main Sub Harness  Engine Ro ...

Harness connector
Description HARNESS CONNECTOR (TAB-LOCKING TYPE)  The tab-locking type connectors help prevent accidental looseness or disconnection.  The tab-locking type connectors are disconnec ...
