Nissan Rogue Service Manual: Wiring diagram

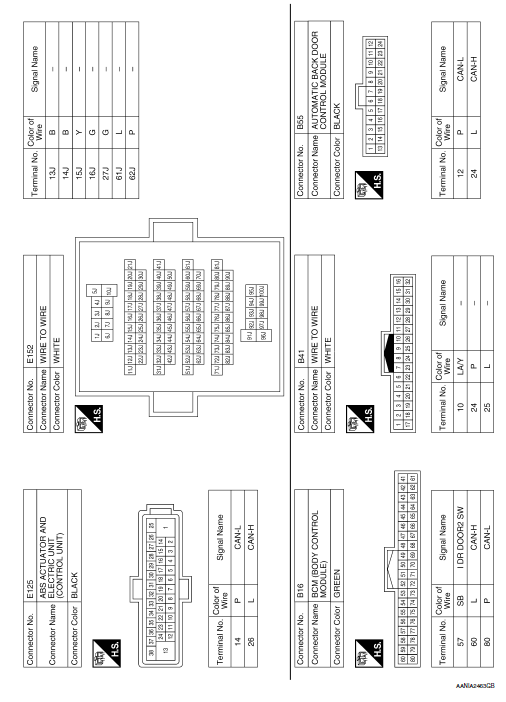

Wiring Diagram

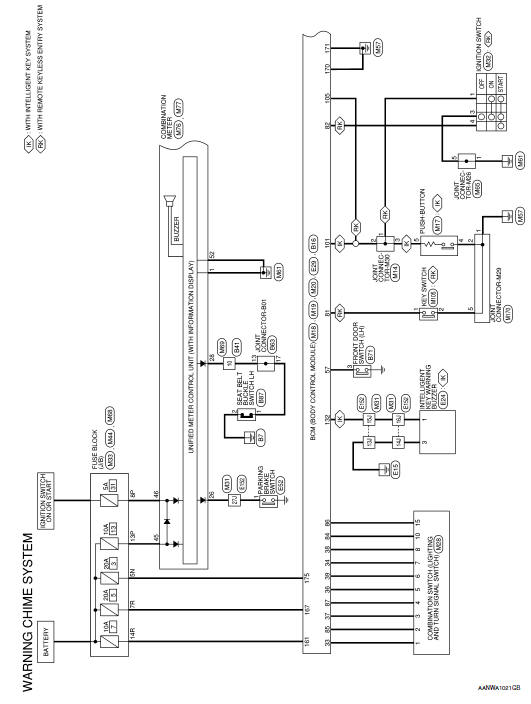

Wiring Diagram

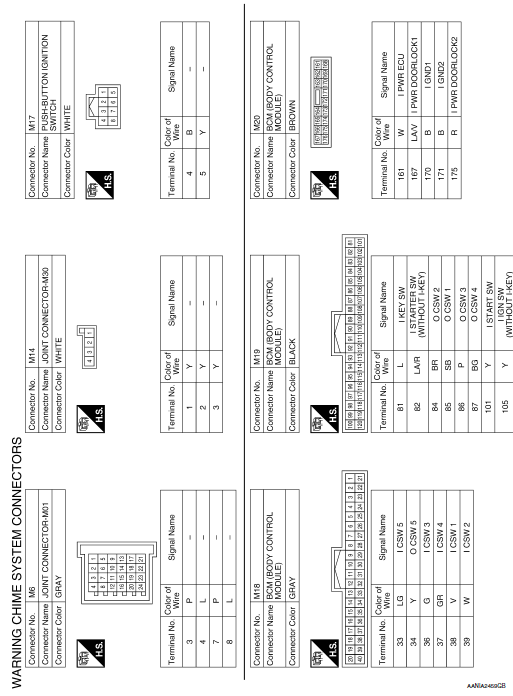

Wiring Diagram

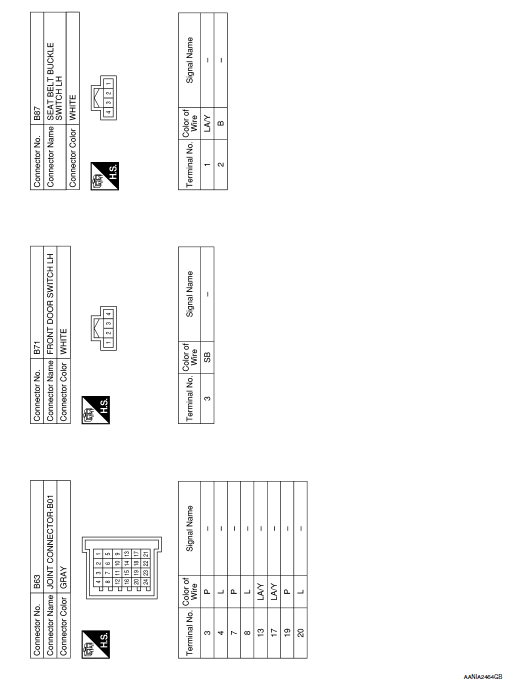

Wiring Diagram

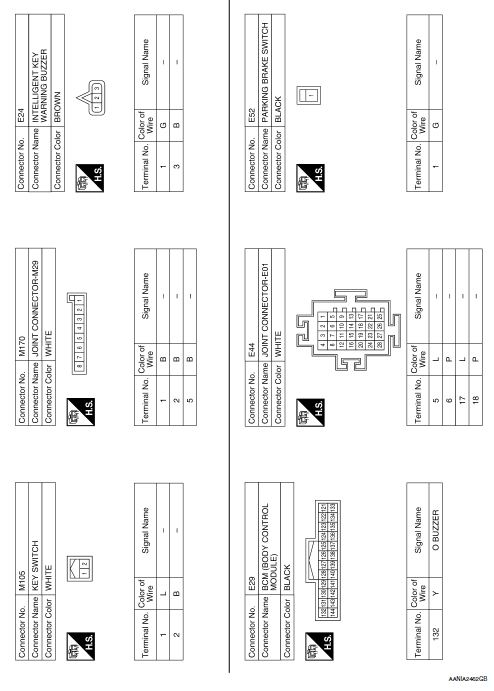

Wiring Diagram

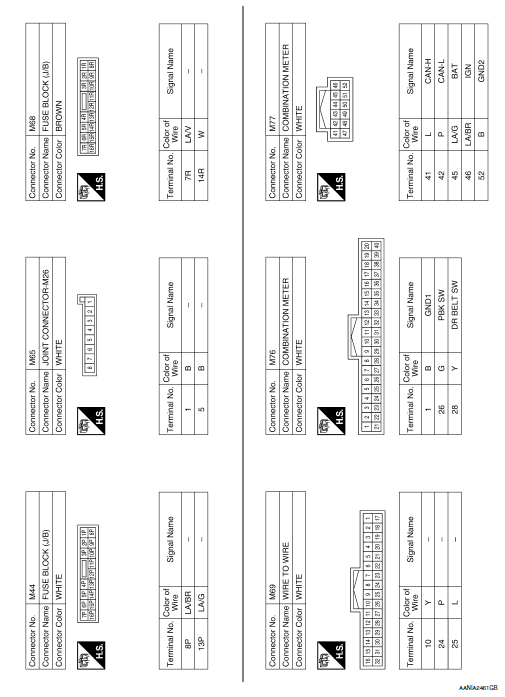

Wiring Diagram

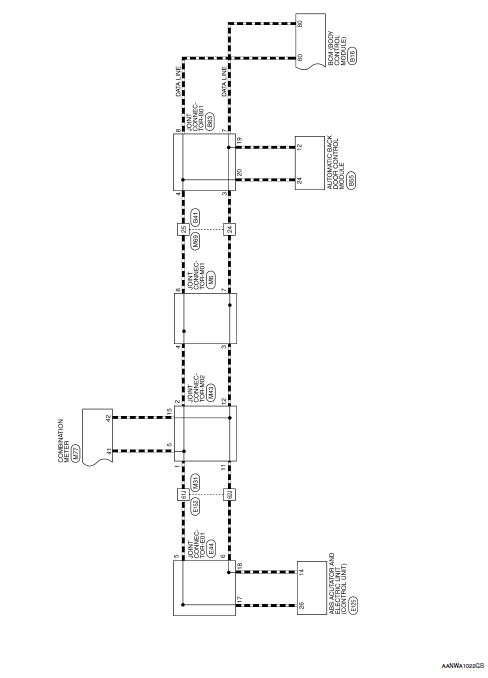

Wiring Diagram

Wiring Diagram

Wiring Diagram

BCM (body control module)
List of ECU Reference ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.OBTAIN INFORMATION ABOUT SYMPTOM Interview the customer to obtain as much information as possible about the conditi ...

Other materials:

Diagnosis system (BCM) (without intelligent key system)
COMMON ITEM COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. SYSTEM APPLICATION BCM can perform the following functions. BUZZER BUZZER : CONSULT Function (BCM - BUZZER) DATA MONITOR ACTIV ...

Fuel injector and fuel tube
Exploded View Rocker cover  Cylinder head  Fuel tube  Clip O-ring (green) Fuel injector  O-ring (black) Front Removal and Installation WARNING:  Put a "CAUTION: FLAMMABLE" sign in the workshop.  Be sure to work in a well ve ...
