Nissan Rogue Service Manual: U1044 ENG comm circuit
DTC Description
DTC DETECTION LOGIC
| DTC No. | CONSULT screen terms (Trouble diagnosis content) | DTC detecting condition |
| U1044 | ENG COMM CIRCUIT (Engine communication circuit | A signal voltage of LIN communication between ECM and generator is excessively low or excessively high |
POSSIBLE CAUSE
- Harness or connectors (LIN communication circuit is open or shorted.)
- Generator
FAIL-SAFE
Not applicable
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted. always perform the following procedure before conducting the next test.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
- Turn ignition ON and wait at least 10 seconds.
- Check DTC.
Is DTC detected? YES >> Proceed to EC-173, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
1.CHECK LIN COMMUNICATION CIRCUIT
- Turn ignition switch OFF.
- Disconnect ECM harness connector and generator harness connector.

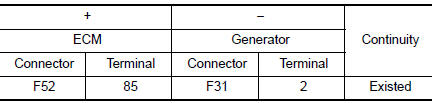

- Check the continuity between ECM harness connector and generator harness connector.
- Also check harness for short to power and short to ground.
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace error-detected parts.
2.REPLACE GENERATOR
- Replace generator. Refer to CHG-20, "Removal and Installation".
- Erase DTC.
- Perform DTC confirmation procedure again. Refer to EC-173, "DTC Description".
Is DTC detected again? YES >> Replace ECM. Refer to EC-499, "Removal and Installation".
NO >> INSPECTION END
