Nissan Rogue Service Manual: P2815 select solenoid

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / Dtc/circuit diagnosis / P2815 select solenoid

DTC Description

DTC DETECTION LOGIC

DTC	CONSULT screen terms (Trouble diagnosis content)	DTC detection condition
P2815	SELECT SOLENOID (Select solenoid)	When all of the following conditions are satisfied and this state is maintained for 0.2 seconds: TCM power supply voltage: More than 11 V TCM judges that solenoid valve circuit is open. P2814 is not detected.

POSSIBLE CAUSE

Harness or connector (Select solenoid valve circuit open or shorted to power supply)
Select solenoid valve

FAIL-SAFE

Selector shock is large

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.CHECK DTC DETECTION

Start the engine.
Maintain the following conditions. (Keep 5 seconds or more after the selector lever shifted.)

Selector lever : N → D, N → R, P → R

Check the first trip DTC.

Is “P2815” detected? YES >> Go to TM-174, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

1.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT

Turn ignition switch OFF.
Disconnect TCM connector and CVT unit connector.
Check continuity between TCM harness connector terminal and ground.

Check circuit between TCM and CVT unit

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace damaged parts.

2.CHECK CIRCUIT BETWEEN CVT UNIT AND GROUND

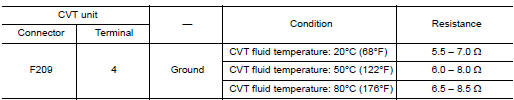

Check continuity between CVT unit harness connector terminal and ground.

Check circuit between CVT unit and ground

Is the inspection result normal? YES >> INSPECTION END

NO >> There is malfunction of select solenoid valve. Replace transaxle assembly. Refer to TM-220, "Removal and Installation".
