Nissan Rogue Service Manual: Steering column covers
Removal and Installation
REMOVAL

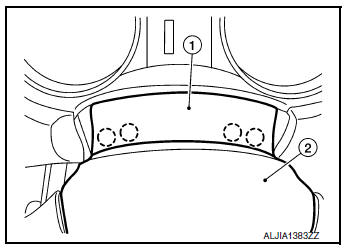

- Release gap hider (1) pawls from the steering column upper
cover (2).
: Pawl

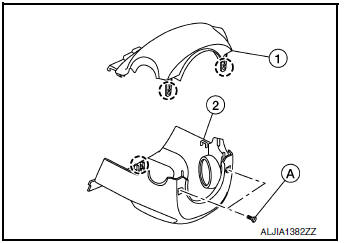

- Remove steering column cover screws (A) NOTE: Rotate steering wheel to access steering column cover screws.
- Release steering column upper cover (1) pawls using a suitable
tool and remove.: Pawl
- Release steering column lower cover (2) pawl using a suitable tool and remove.
INSTALLATION
Installation is in the reverse order of removal.
