Nissan Rogue Service Manual: Side curtain air bag module

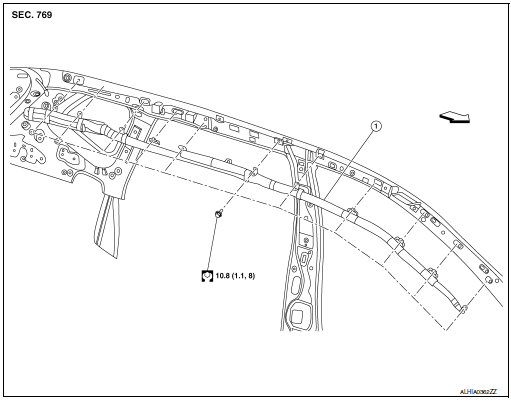

Exploded View

- Side curtain air bag module
Fron
Removal and Installation
WARNING:
- Before servicing the SRS, turn ignition switch OFF, disconnect
both battery terminals then wait at
least three minutes.
- Always work from the side of air bag module. Do not work in
front of it.
- Do not use air tools or electric tools for servicing.
REMOVAL
- Disconnect negative and positive battery terminals, then wait at
least three minutes. Refer to PG-77,
"Removal and Installation".
- Remove the headlining. Refer to INT-30, "Removal and
Installation".
- Disconnect the harness connector from the side curtain air bag
module.
CAUTION:

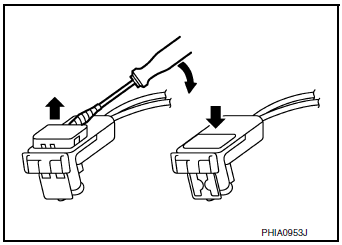

- For removing/installing the side curtain air bag module
harness connector, insert a thin screwdriver wrapped in
tape into the notch, lift the lock and remove the harness
connector as shown.
- Install the harness connector with the lock raised, and
push the lock into the harness connector as shown.
- After installing the harness connector, check that the lock
is pushed in securely.

- Remove bolts, and side curtain air bag module.
CAUTION:
- Replace the side curtain air bag module if it has been dropped
or sustained an impact.
- Do not strike the side curtain air bag module.
- Do not insert any foreign objects (screwdriver, etc.) into the
side curtain air bag module.
- Do not disassemble the side curtain air bag module.
- Do not expose the side curtain air bag module to temperatures
exceeding 90 °C (194 °F).
- Do not allow oil, grease, detergent or water to come in contact
with the side curtain air bag module.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
- Do not damage the harness while installing the side curtain air
bag module.
- Make sure that the side curtain air bag module bracket
supporting hooks are securely seated into
the body slots before releasing the side curtain air bag module during
installation to avoid damaging
the side curtain air bag module.
- Make sure that the anti-twist stripe (black for RH side, blue
for LH side) is visible along entire length
of side curtain air bag module.
- If a malfunction is indicated by the air bag warning lamp after
repair or replacement of the malfunctioning
parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with
CONSULT".
- After installation is complete, check that no system
malfunction is detected causing the air bag
warning lamp to illuminate.
Front side air bag module
Removal and Installation
The front side air bag module is part of the front seatback. For removal and
installation of the front seatback,
refer to SE-55, "Seatback".
