Nissan Rogue Service Manual: Front passenger air bag module

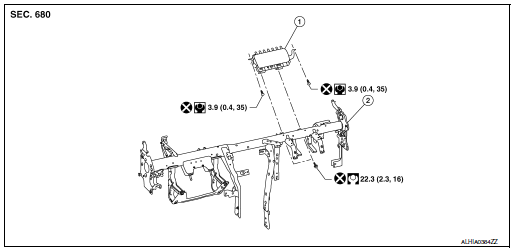

Exploded View

- Front passenger air bag module
- Steering member
Removal and Installation
WARNING:
- Before servicing the SRS, turn ignition switch OFF, disconnect
both battery terminals then wait at
least three minutes.
- Always work from the side of air bag module. Do not work in front of
it.
- Do not use air tools or electric tools for servicing.
REMOVAL
- Remove the Instrument panel assembly. Refer to IP-14, "INSTRUMENT
PANEL ASSEMBLY : Removal
and Installation".
- Remove front passenger air bag module screws.

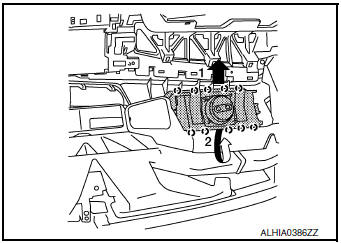

- Release the pawls by removing the front passenger air bag module
(1) as shown.

: Pawl
CAUTION:

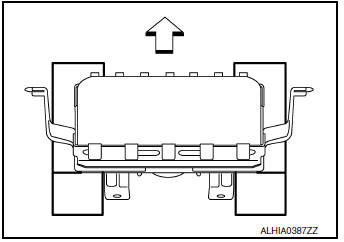

- Always place the front passenger air bag module with pad
side facing upward as shown.

: Upward

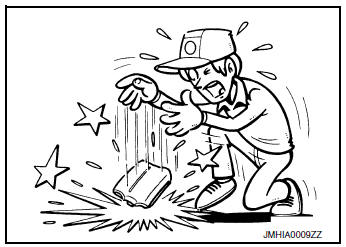

- Replace the front passenger air bag module if it has been
dropped or sustained an impact.
- Do not strike the front passenger air bag module.

- Do not insert any foreign objects (screwdriver, etc.) into the
passenger air bag module.
- Do not disassemble the passenger air bag module.
- Do not expose the passenger air bag module to temperatures
exceeding 90°C (194°F).
- Do not allow oil, grease, detergent, or water to come in
contact with the front passenger air bag module.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
- Do not reuse the front passenger air bag module bolts.
- Do not damage the front passenger air bag module harness during
installation.
- After installation is complete, check that no system
malfunction is detected causing the air bag
warning lamp to illuminate.
- If a malfunction is indicated by the air bag warning lamp after
repair or replacement of the malfunctioning
parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with
CONSULT".
