Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Transmission & driveline / Front Axle / AWD / Service data and specifications (SDS)

Wheel Bearing

Wheel Bearing

Drive Shaft

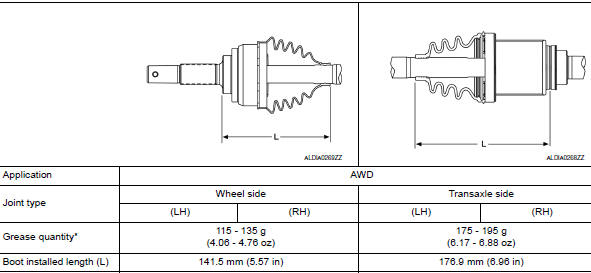

Drive Shaft Specifications

Drive Shaft Specifications

*Always check with the Parts Department for the latest parts information.

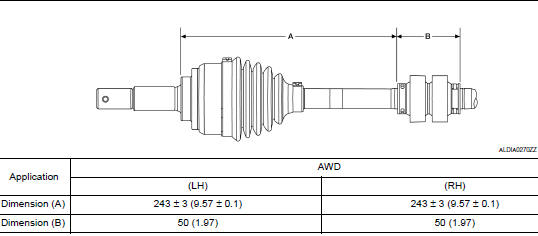

Dynamic Damper Specifications

Dynamic Damper Specifications

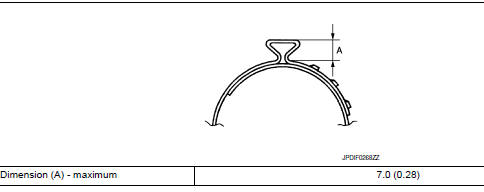

Boot Band Specification

Boot Band Specification

Unit disassembly and assembly
FRONT DRIVE SHAFT Exploded View (LH) Shaft  Circular clip Dust shield  Housing Snap ring Spider assembly Stopper ring Boot Boot band Joint sub-assembly ...
