Sensor maintenance

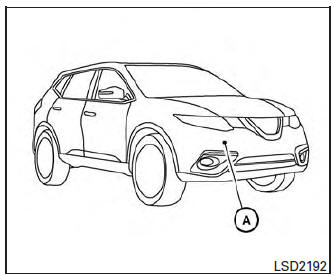

The distance sensor for the FCW system A is located behind the front bumper.
To keep the FCW system operating properly, be sure to observe the following:
- Always keep the sensor area of the front bumper clean.
- Do not strike or damage the areas around the sensor.
- Do not cover or attach stickers or similar objects on the front bumper near the sensor area. This could cause failure or malfunction.
