Nissan Rogue Service Manual: Second row seats

Nissan Rogue Service Manual / Body interior / Seat / Removal and installation / Second row seats

Exploded View

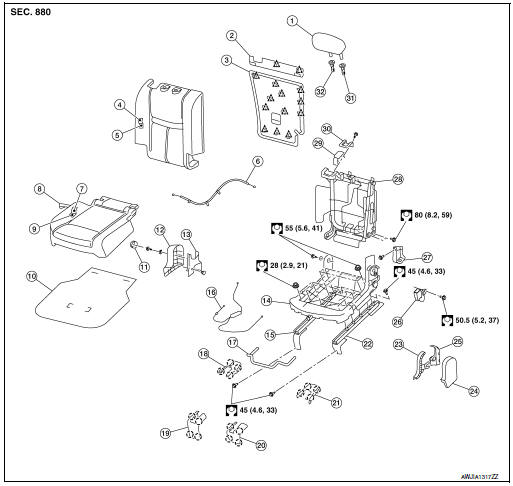

RH SEAT

Exploded View

  1. Headrest
  2.  Seatback upper luggage board
  3.  Seatback luggage board
  4.  Seatback trim
  5. Seatback pad
  6. Recline release cable
  7. Seat cushion trim
  8. Fold flat strap
  9. Seat cushion pad
  10. Seat cushion silencer
  11. Bolt cover
  12.  Seat cushion outer finisher (RH)
  13.  Seat cushion inner finisher (RH)
  14. Seat cushion frame
  15. Seat cushion slide (RH)
  16.  Seat cushion slide cable
  17. Seat slide control lever
  18. Rear bolt cover (RH) (with third row seat)
  19.  Front bolt cover (RH)
  20. Front bolt cover (LH)
  21.  Rear bolt cover (LH) (with third row seat)
  22.  Seat cushion slide (LH)
  23. Seat cushion inner finisher (LH)
  24.  Seat cushion outer finisher (LH)
  25.  Seat cushion rear finisher (LH)
  26. Seat belt buckle
  27.  Recline lever finisher
  28.  Seatback frame
  29.  Recline device
  30.  Recline device cover
  31.  Headrest holder (locked)
  32.  Headrest holder (free)

Clip
Pawl

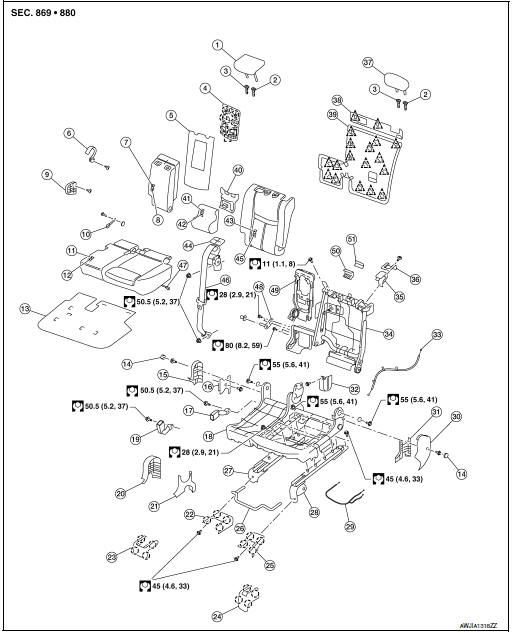

LH SEAT

Exploded View

  1. Headrest (center)
  2. Headrest holder (locked)
  3. Headrest holder (free)
  4. Cup holder
  5. Armrest board
  6. Armrest inner finisher
  7.  Armrest trim
  8. Armrest pad
  9. Armrest outer finisher
  10.  Armrest fold flat strap
  11. Seat cushion trim
  12. Seat cushion pad
  13.  Seat cushion silencer
  14. Bolt cover
  15. Seat cushion outer finisher (RH)
  16.  Seat cushion inner finisher (RH)
  17. Seat belt buckle (center)
  18.  Seat cushion frame
  19.  Seat belt buckle (LH)
  20.  Seat cushion center finisher (RH)
  21.  Seat cushion center finisher (LH)
  22.  Rear bolt cover (RH) (with third row seat)
  23.  Front bolt cover (RH)
  24.  Front bolt cover (LH)
  25. Rear bolt cover (LH) (with third row seat)
  26. Seat slide control lever
  27. Seat cushion slide (RH)
  28.  Seat cushion slide (LH)
  29. Seat cushion slide cable
  30. Seat cushion outer finisher (LH)
  31.  Seat cushion inner finisher (LH)
  32.  Armrest inner finisher
  33. Recline release cable
  34.  Seatback frame
  35. Recline device
  36.  Recline device finisher
  37.  Headrest (LH)
  38. Seatback luggage upper board
  39.  Seatback luggage board
  40.  Armrest lower pad
  41.  Seatback center trim
  42.  Seatback center pad
  43.  Seatback trim
  44.  Seat belt retractor finisher
  45.  Seatback pad
  46.  Seat belt retractor (center)
  47. Fold flat strap
  48.  Armrest bracket
  49.  Armrest frame
  50.  Seat belt retractor inner finisher
  51.  Seat belt retractor outer finisher

Clip
Pawl

Removal and Installation

LH SEAT

CAUTION: During removal and installation, an assistant is required to protect against injury or damage.

Removal

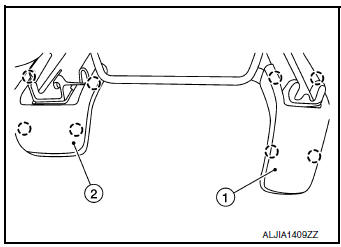

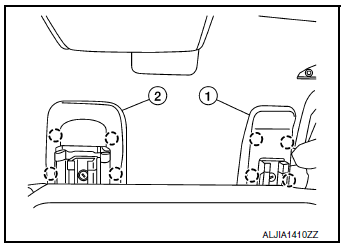

  1.  Using a suitable tool release pawls and remove front bolt covers RH (2) and LH (1).

    :Pawl

Removal

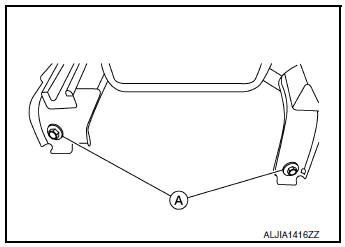

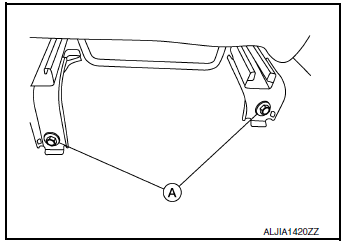

  1. Remove the seat front bolts (A).

Removal

  1. Slide the seat to the full forward position.

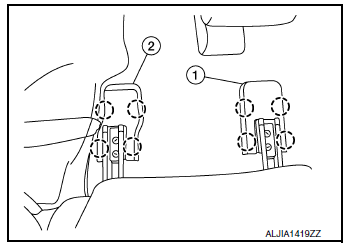

  2.  Using a suitable tool release pawls and remove rear bolt covers RH (2) and LH (1) (with third row seat).

    :Pawl

Removal

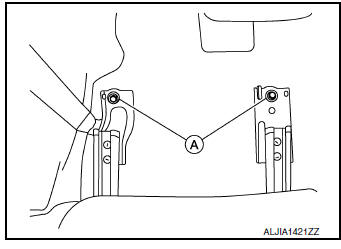

  1. Remove the seat rear bolts (A).

Removal

  1. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

RH SEAT

CAUTION: During removal and installation, an assistant is required to protect against injury or damage.

Removal

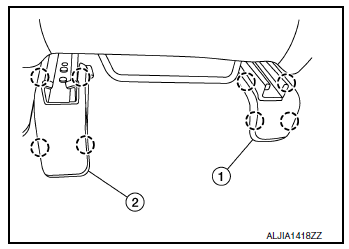

  1.  Using a suitable tool release pawls and remove front bolt covers LH (1) and RH (2).

    :Pawl

Removal

  1. Remove the seat front bolts (A).

Removal

  1. Slide the seat to the full forward position.
  2. Using a suitable tool release pawls and remove rear bolt covers RH (2) and LH (1) (with third row seat).

    :Pawl

Removal

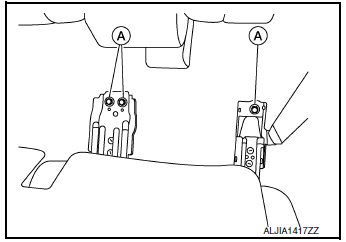

  1. Remove the seat rear bolts (A).

Removal

  1. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.
