SRS Air Bag Warning Labels
- SRS Air Bag Warning Labels
The warning labels are located on the surface of the sun visor.

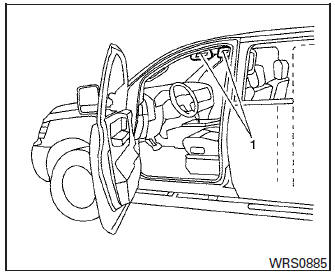

Warning labels about the supplemental frontimpact air bag system are placed in the vehicle as shown in the illustration.
| WARNING Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of it! |
Precautions on SRS
This SRS section contains important information
concerning the following systems:
Driver and passenger supplemental frontimpact
air bag (NISSAN Advanced Air Bag
System)
Front seat-mou ...
Supplemental air bag warning light
The supplemental air bag warning light,
displaying in the instrument panel,
monitors
the circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch i ...
