Nissan Rogue Service Manual: Roof side molding

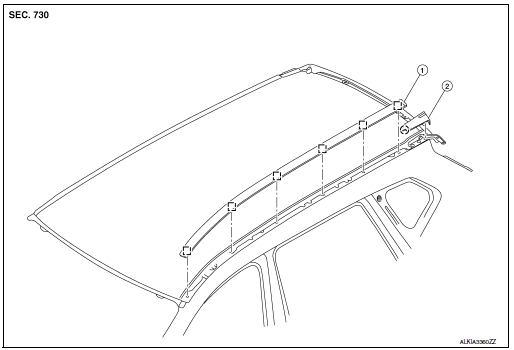

Exploded View
- Roof side molding
- Back door hinge cover
Metal clip
Pawl
Removal and Installation
REMOVAL

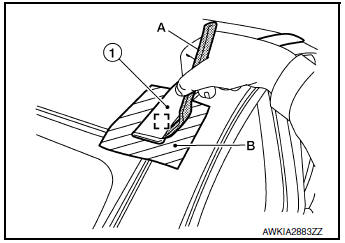

- Release roof side molding (1) using suitable tool (A) then
remove roof side molding.: Metal clip
CAUTION: Apply protective tape (B) around the roof side molding.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When installing roof side molding, check that clips are securely placed in body panel holes.
