Nissan Rogue Service Manual: Rear power window switch

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / Removal and installation / Rear power window switch

Removal and Installation

REMOVAL

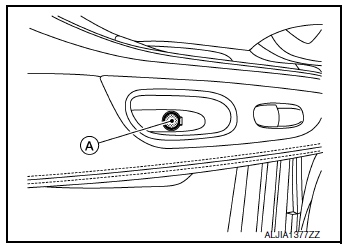

Remove screw cover (1).

Removal

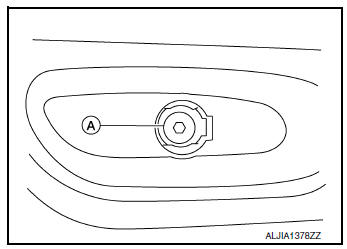

Remove screw (A).

Removal

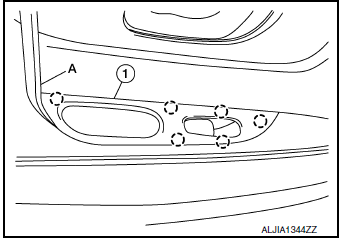

Release pawls using a suitable tool (A) and remove rear power window switch finisher (1).
: Pawl

Removal

Disconnect harness connector from rear power window switch.

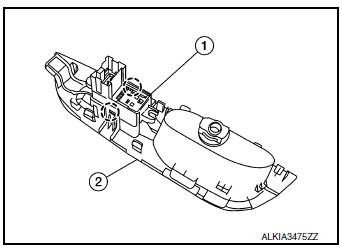

Release the pawls, then separate the rear power window switch (1) from the switch finisher (2).
: Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.
