Nissan Rogue Service Manual: Precaution
Precautions for trouble diagnosis
CAUTION:
- Never apply 7.0 V or more to the measurement terminal.
- Use a tester with open terminal voltage of 7.0 V or less.
- Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when checking the harness.
Precautions for Harness Repair

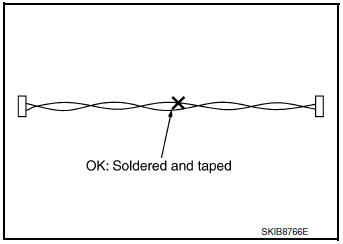

- Solder the repaired area and wrap tape around the soldered area.
Note: a fray of twisted lines must be within 110 mm (4.33 In).

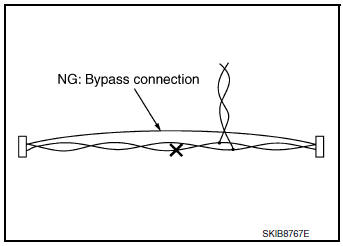

- Bypass connection is never allowed at the repaired area.
NOTE: Bypass connection may cause CAN communication error. The spliced wire becomes separated and the characteristics of twisted line are lost.
- Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communication line.
CAN fundamental
...
System description
CAN COMMUNICATION SYSTEM
System Description
CAN communication is a multiplex communication system. This enables the
system to transmit and receive
large quantities of data at high speed by c ...
