Nissan Rogue Service Manual: Plug
Description
Replace the O-ring if oil leakage or exudes from the plug.

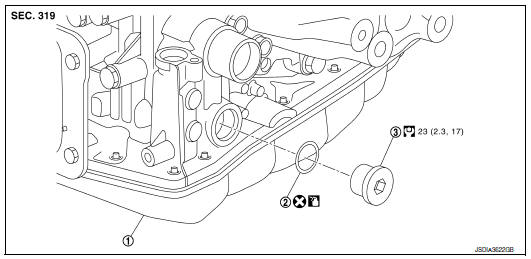

Exploded View
- Transaxle assembly
- O-ring
- Plug
: Always replace after every
disassembly.
: N·m (kg-m, ft-lb)
: Apply CVT fluid
Removal and Installation
REMOVAL
- Partially remove front fender protector (LH). Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
- Remove the plug and O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
Inspection and Adjustment
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage. Refer to TM-190, "Inspection".
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
CVT oil warmer
Exploded View
Transaxle assembly
CVT oil warmer
: N·m (kg-m, in-lb)
Removal and Installation
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns co ...
Unit removal and installation
TRANSAXLE ASSEMBLY
Exploded View
Transaxle assembly
O-ring
CVT fluid charging pipe
CVT fluid charging pipe cap
For the tightening torque, refer to TM-220, "Removal an ...
