Nissan Rogue Owners Manual: Specifications
Engine
| Model | QR25DE | |
| Type | Gasoline, 4-cycle, DOHC | |
| Cylinder arrangement | 4-cylinder | |
| Bore x Stroke |
in (mm) |
3.5 x 3.9 (89.0 x 100.0) |
| Displacement |
cu in (cm3) |
151.82 (2,488) |
| Firing order | 1-3-4-2 | |
| Idle speed | No adjustment is necessary. | |
| CVT (in “N” position) | ||
| Ignition timing (degree B.T.D.C. at idle speed) | ||
| CO % at idle | ||
| Spark plug | FXE20HE-11C | |
| Spark plug gap (Nominal) |
in (mm) |
0.043 (1.1) |
| Camshaft operation | Timing chai | |
This spark ignition system complies with the Canadian standard ICES-002

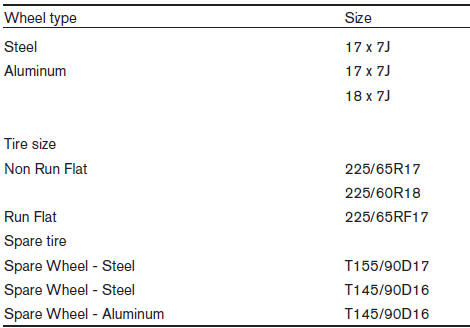

Wheels and tires

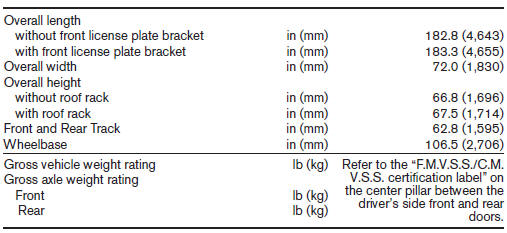

Dimensions and weights
Air conditioner system refrigerant and oil recommendations
The air conditioner system in your NISSAN
vehicle must be charged with the refrigerant
HFC-134a (R-134a) and NISSAN A/C
system oil Type ND-OIL8 or the exact
equivalents.
CAUTIONThe use of ...
When traveling or registering your vehicle in
another country
When planning to drive your NISSAN vehicle
in another country, you should first find
out if the fuel available is suitable for your vehicle’s
engine.
Using fuel with an octane rating that is t ...
