Nissan Rogue Service Manual: Ignition coil

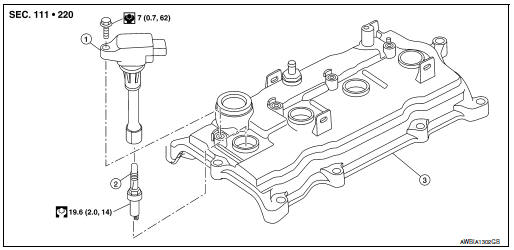

Exploded View
- Ignition coil
- Spark plug
- Rocker cover
Removal and Installation
REMOVAL
- Remove air duct assembly. Refer to EM-24, "Exploded View" .
- Disconnect the harness connector from the ignition coil.
- Remove the ignition coil.
CAUTION: Do not drop or shock it.
INSTALLATION
Installation is in the reverse order of removal.
