Description

Front power window motor RH will be operated if front power window switch RH is operated.

Component Function Check

1. CHECK FRONT POWER WINDOW SWITCH RH FUNCTION

Check front power window motor RH operation with front power window switch RH.

Is the inspection result normal? YES >> Front power window switch RH is OK.

NO >> Refer to PWC-34, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK FRONT POWER WINDOW SWITCH RH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window switch RH connector.
  3.  Turn ignition switch ON.

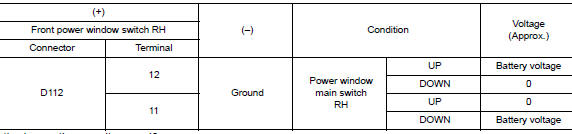

  4.  Check voltage between front power window switch RH harness connector and ground.

Check front power window switch rh input signal

Is the inspection result normal? YES >> GO TO 2.

NO >> GO TO 3.

2.CHECK FRONT POWER WINDOW SWITCH RH

Check front power window switch RH.

Refer to PWC-35, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace front power window switch RH. Refer to PWC-65, "Removal and Installation".

3.CHECK FRONT POWER WINDOW SWITCH RH CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect main power window and door lock/unlock switch connector.
  3. Check continuity between main power window and door lock/unlock switch harness connector and front power window switch RH harness connector.

Check front power window switch rh circuit

  1. Check continuity between main power window and door lock/unlock switch harness connector and ground.

Check front power window switch rh circuit

Is the inspection result normal? YES >> Replace main power window and door lock/unlock switch. Refer to PWC-64, "Removal and Installation".

NO >> Repair or replace harness.

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

Component Inspection

1.CHECK FRONT POWER WINDOW SWITCH RH

  1.  Turn ignition OFF.
  2.  Disconnect front power window switch RH connector.

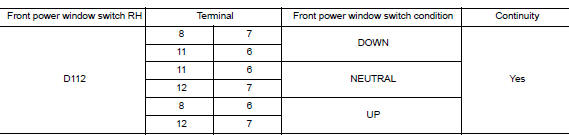

  3.  Check front power window switch RH.

Is the inspection result normal? YES >> Inspection End.

NO >> Replace front power window switch RH. Refer to PWC-65, "Removal and Installation".
