Nissan Rogue Service Manual: Front grille

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Exterior / Removal and installation / Front grille

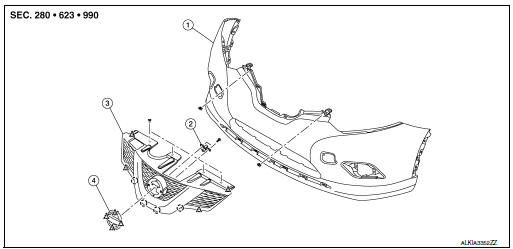

Exploded View

Exploded View

Front bumper fascia
Front camera (if equipped)
Front grille
Front emblem

Pawl
Clip

Removal and Installation

REMOVAL

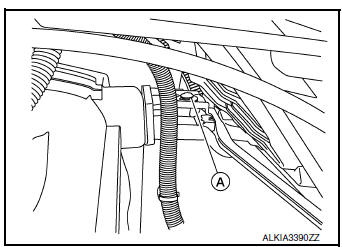

Remove front grille upper clip (A) (LH/RH).

Removal

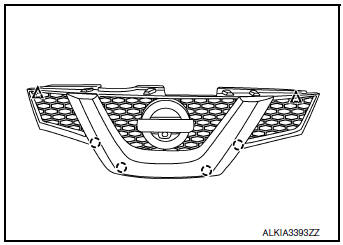

Release clips and pawls, then remove front grille.
: Clip
: Pawl

Removal

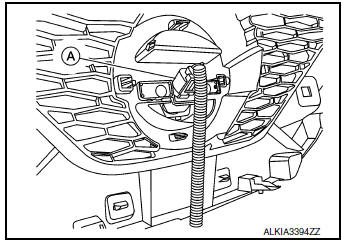

Disconnect harness connector (A) from front camera (if equipped).

Removal

Remove the following parts after removing front grille (if necessary).

Front camera (if equipped). Refer to AV-388, "Removal and Installation".
Front emblem

INSTALLATION

Installation is in the reverse order of removal.

NOTE: Calibration must be performed after removing/replacing the front camera (if equipped). Refer to AV-292, "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure".
