Exploded View

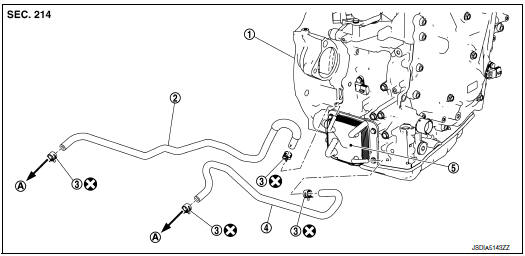

COMPONENT PARTS LOCATION

Component parts location

Transaxle assembly
Fluid cooler hose A
Hose clamp
Fluid cooler hose B
CVT oil warmer
To radiator

: Always replace after every disassembly.

Removal and Installation

REMOVAL

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Remove engine under cover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
Remove fender protector side cover. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
Remove fluid cooler hoses.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse hose clamp.
Securely install fluid cooler hose A clip to the radiator core support.

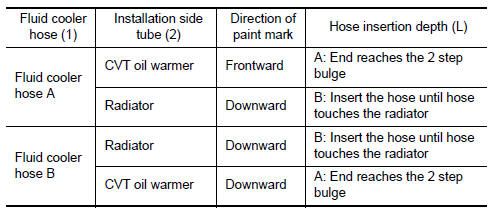

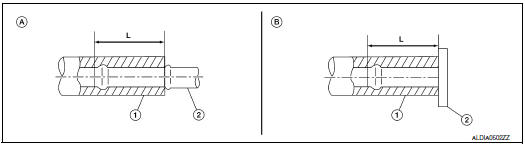

Refer to the followings when installing fluid cooler hoses.

Installation

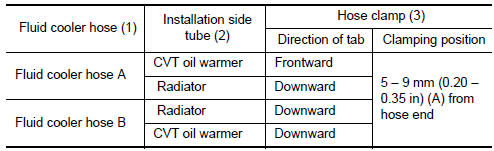

Refer to the followings when installing hose clamps.

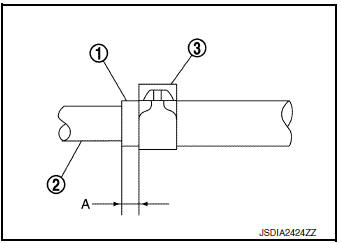

CAUTION: Hose clamp should not interfere with the bulge of tube.

Installation

Inspection

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to TM-190, "Inspection".

Water hose

Exploded View Water outlet Hose clamp Water hose A Clip CVT oil warmer Transaxle assembly Water hose B Heater thermostat Water hose C : Always replace after every di ...

CVT oil warmer

Exploded View Transaxle assembly CVT oil warmer : N·m (kg-m, in-lb) Removal and Installation REMOVAL WARNING: Do not remove the radiator cap when the engine is hot. Serious burns co ...
