Nissan Rogue Service Manual: EVAP canister filter

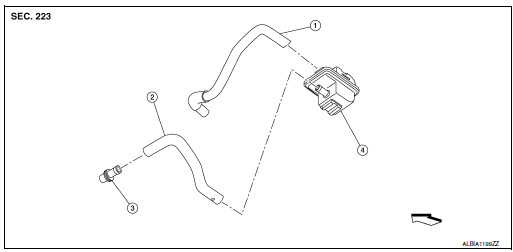

Exploded View

Exploded View

  1. EVAP canister vent control valve hose
  2. Canister drain hose
  3. Plug
  4.  EVAP canister filter

Front

Removal and Installation

REMOVAL

  1.  Disconnect EVAP canister vent control valve hose from EVAP canister filter.
  2.  Disconnect canister drain hose from EVAP canister filter.
  3.  Remove the bolt and the EVAP canister filter.

INSTALLATION

Installation is in the reverse order of removal.
