Nissan Rogue Service Manual: Disassembly and assembly

Nissan Rogue Service Manual / Engine / Fuel System / Disassembly and assembly

FUEL LEVEL SENSOR UNIT

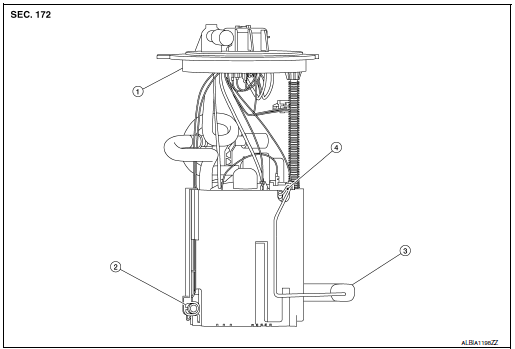

Exploded View

Fuel Level Sensor Unit

Fuel Level Sensor Unit

  1. Fuel filter and pump assembly
  2. Fuel level sensor unit
  3. Float arm assembly
  4. Fuel tank temperature sensor

Disassembly and Assembly

NOTE: Fuel level sensor unit and fuel tank temperature sensor are replaced as and assembly.

DISASSEMBLY

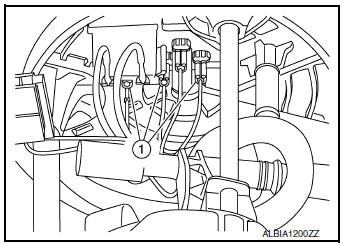

  1.  Disconnect fuel level sensor unit/fuel tank temperature sensor harness connector (1).

NOTE: Hold connector with your fingers, because there is no tab for releasing stopper. Pull harness connector straight downward.

Disassembly

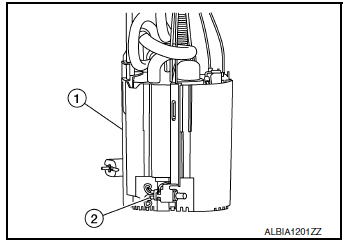

  1. Remove fuel tank temperature sensor (2) from fuel filter and fuel pump assembly (1).

Disassembly

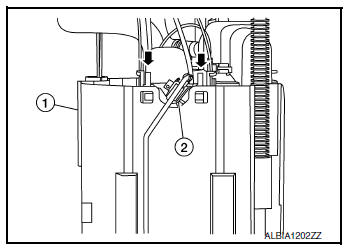

  1. Using a suitable tool press up on clip ( ) and remove fuel level sensor unit (2) from fuel filter and fuel pump assembly (1).

CAUTION:

Disassembly

ASSEMBLY

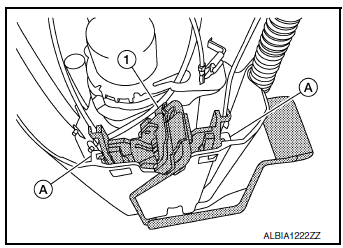

  1.  Slide fuel level sensor unit (1) until it aligns to installation groove (A).

Disassembly

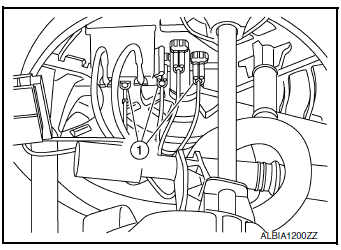

  1. Connect fuel level sensor unit/fuel tank temperature sensor harness connectors (1).

Disassembly

  1. Check fuel level sensor unit installation position to fuel filter and pump assembly for damage. Replace as necessary.
  2.  Assembly of remaining components is in the reverse order of disassembly.

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.

  1.  Turn ignition switch “ON” (with engine stopped), then check connections for leaks by applying fuel pressure to fuel piping.
  2.  Start engine and let it idle and check there are no fuel leaks at the fuel system connections.

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

Standard and Limit

Fuel tank capacity Approx. 55 ( 14-1/2 US gal, 12-1/8 Imp gal)
Fuel recommendation Refer to MA-11
