Nissan Rogue Service Manual: Door outside molding

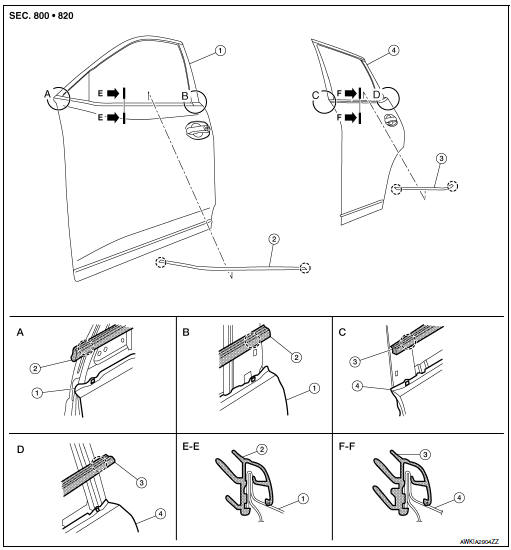

Exploded View

Exploded View

  1. Front door panel
  2. Front door outside molding
  3. Rear door panel
  4.  Rear door outside molding

Pawl

Removal and Installation

FRONT DOOR OUTSIDE MOLDING

Removal

  1.  Lower front door glass.
  2.  Remove door mirror. Refer to MIR-22, "Removal and Installation".

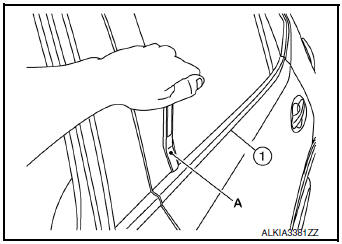

  3. Release front pawl then rear pawl using a suitable tool (A) and remove door outside molding (1).

Removal

Installation

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

  1.  Lower rear door glass.

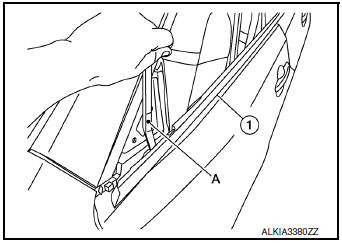

  2. Release front pawl then rear pawl using a suitable tool (A) and remove door outside molding (1).

Removal

Installation

Installation is in the reverse order of removal.
