Nissan Rogue Service Manual: P0138 HO2S2

DTC Description

DTC DETECTION LOGIC

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/ F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time.

MALFUNCTION A

To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during the various driving condition such as fuel-cut.

MALFUNCTION B

To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the minimum voltage of sensor is sufficiently low during the various driving condition such as fuel-cut.

POSSIBLE CAUSE

DTC P0138 - A

•  Harness or connectors (The sensor circuit is open or shorted.)
•  Heated oxygen sensor 2

DTC P0138 - B

•  Harness or connectors (The sensor circuit is open or shorted.)
•  Heated oxygen sensor 2
•  Fuel pressure
•  Fuel injector

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

1.  Turn ignition switch OFF and wait at least 10 seconds.
2.  Turn ignition switch ON.
3.  Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A

1.  Start engine and warm it up to normal operating temperature.
2.  Turn ignition switch OFF and wait at least 10 seconds.
3.  Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4.  Let engine idle for 2 minutes.
5.  Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Proceed to EC-244, "Diagnosis Procedure".

NO-1 >> With CONSULT: GO TO 3.

NO-2 >> Without CONSULT: GO TO 5.

3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

NOTE: For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30°C (32 to 86°F).

1.  Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2.  Start engine and warm it up to normal operating temperature.
3.  Turn ignition switch OFF and wait at least 10 seconds.
4.  Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5.  Let engine idle for 1 minute.
6.  Make sure that “COOLAN TEMP/S” indication is more than 70°C (158°F).

If not, warm up engine and go to next step when “COOLAN TEMP/S” indication reaches 70°C (158°F).

7.  Open engine hood.
8.  Select “HO2S2 (B1) P1146” of “HO2S2” in “DTC WORK SUPPORT” mode of “ENGINE” using CONSULT.
9.  Follow the instruction of CONSULT.

   NOTE: It will take at most 10 minutes until “COMPLETED” is displayed.

10.  Touch “SELF-DIAG RESULT”.

Which is displayed on CONSULT

OK >> INSPECTION END

NG >> Proceed to EC-244, "Diagnosis Procedure".

CAN NOT BE DIAGNOSED>>GO TO 4.

4.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B AGAIN

1. Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).
2.  Perform DTC confirmation procedure again.

>> GO TO 3.

5.PERFORM COMPONENT FUNCTION CHECK-1

Without CONSULT

1.  Start engine and warm it up to normal operating temperature.
2.  Turn ignition switch OFF and wait at least 10 seconds.
3.  Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 6.

6.PERFORM COMPONENT FUNCTION CHECK-2

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 7.

7.PERFORM COMPONENT FUNCTION CHECK-3

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal? YES >> INSPECTION END

NO >> Proceed to EC-244, "Diagnosis Procedure".

Diagnosis Procedure

1.INSPECTION START

Confirm the detected malfunction (A or B). Refer to EC-242, "DTC Description".

Which malfunction is detected? A >>GO TO 2.

B >>GO TO 7.

2.CHECK HO2S2 CONNECTOR FOR WATER

1.  Turn ignition switch OFF.
2.  Disconnect heated oxygen sensor 2 harness connector.
3.  Check connectors for water.

Water should not exist.

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace error-detected parts.

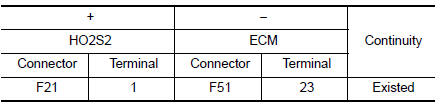

3.CHECK HO2S2 GROUND CIRCUIT

1. Disconnect ECM harness connector.
2.  Check the continuity between HO2S2 harness connector and ECM harness connector.

3. Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace error-detected parts.

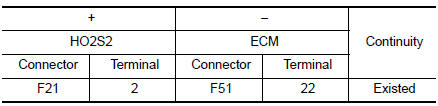

4.CHECK HO2S2 INPUT SIGNAL CIRCUIT

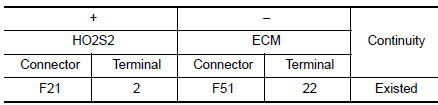

1.  Check the continuity between HO2S2 harness connector and ECM harness connector.

2. Check the continuity between HO2S2 harness connector and ground, or ECM harness connector and ground.

3. Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace error-detected parts.

5.CHECK HEATED OXYGEN SENSOR 2

Check the heated oxygen sensor 2. Refer to EC-247, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident".

NO >> GO TO 6.

6.REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Refer to EX-5, "Exploded View".

CAUTION:

•  Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
•  Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial service tool).

>> INSPECTION END

7.CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE

1.  Clear the mixture ratio self-learning value. Refer to EC-143, "Work Procedure".
2.  Run engine for at least 10 minutes at idle speed.

Is the 1st trip DTC P0172 detected? Is it difficult to start engine? YES >> Perform trouble diagnosis for DTC P0172. Refer to EC-265, "DTC Description".

NO >> GO TO 8.

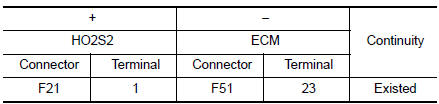

8.CHECK HO2S2 GROUND CIRCUIT

1.  Turn ignition switch OFF.
2.  Disconnect heated oxygen sensor 2 harness connector.
3.  Disconnect ECM harness connector.
4.  Check the continuity between HO2S2 harness connector and ECM harness connector.

5. Also check harness for short to ground and to power.

Is the inspection result normal? YES >> GO TO 9.

NO >> Repair or replace error-detected parts.

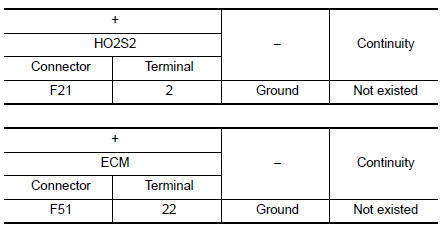

9.CHECK HO2S2 INPUT SIGNAL CIRCUIT

1.  Check the continuity between HO2S2 harness connector and ECM harness connector.

2. Check the continuity between HO2S2 harness connector and ground, or ECM harness connector and ground.

3. Also check harness for short to power.

Is the inspection result normal? YES >> GO TO 10.

NO >> Repair open circuit or short to ground or short to power in harness or connectors.

10.CHECK HEATED OXYGEN SENSOR 2

Check the heated oxygen sensor 2. Refer to EC-247, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident".

NO >> GO TO 11.

11.REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Refer to EX-5, "Exploded View".

CAUTION:

•  Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
•  Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial service tool).

>> INSPECTION END

Component Inspection

1.INSPECTION START

Do you have CONSULT? Do you have CONSULT? YES >> GO TO 2.

NO >> GO TO 3.

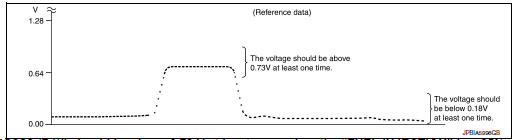

2.CHECK HEATED OXYGEN SENSOR 2

With CONSULT

1.  Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2.  Start engine and warm it up to normal operating temperature.
3.  Turn ignition switch OFF and wait at least 10 seconds.
4.  Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5.  Let engine idle for 1 minute.
6.  Select “FUEL INJECTION” in “ACTIVE TEST” mode of “ENGINE” using CONSULT, and select “HO2S2 (B1)” as the monitor item with CONSULT.
7.  Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ± 25%.

“HO2S2 (B1)” should be above 0.73 V at least once when the “FUEL INJECTION” is + 25%.

“HO2S2 (B1)” should be below 0.18 V at least once when the “FUEL INJECTION” is − 25%.

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 6.

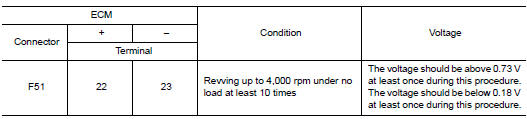

3.CHECK HEATED OXYGEN SENSOR 2-1

Without CONSULT

1.  Start engine and warm it up to normal operating temperature.
2.  Turn ignition switch OFF and wait at least 10 seconds.
3.  Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4.  Let engine idle for 1 minute.
5.  Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 4.

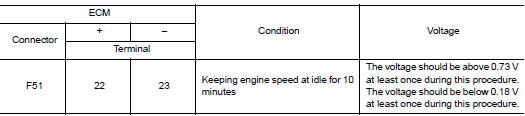

4.CHECK HEATED OXYGEN SENSOR 2-2

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES >> INSPECTION END

NO >> GO TO 5.

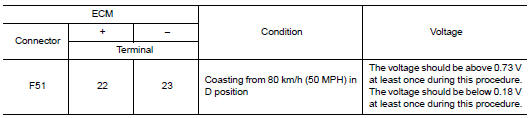

5.CHECK HEATED OXYGEN SENSOR 2-3

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 6.

6.REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Refer to EX-5, "Exploded View".

CAUTION:

•  Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
•  Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner [commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial service tool).

>> INSPECTION END
