Nissan Rogue Service Manual: Spiral cable

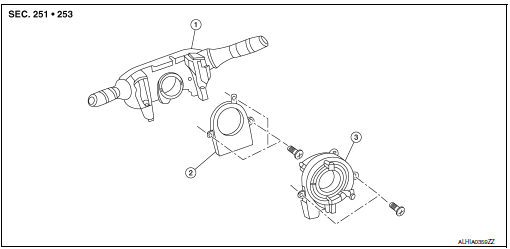

Exploded View

- Combination switch
- Steering angle sensor
- Spiral cabl
Removal and Installation
WARNING:
- Before servicing the SRS, turn ignition switch OFF, disconnect
both battery terminals then wait at
least three minutes.
- Do not use the air tools or electric tools for servicing.
REMOVAL
- Disconnect the negative and positive battery terminals, then wait
at least three minutes. Refer to PG-77,
"Removal and Installation".
- Remove the steering wheel. Refer to ST-11, "Removal and
Installation".
- Remove the steering column upper and lower cover. Refer to IP-17,
"Removal and Installation".

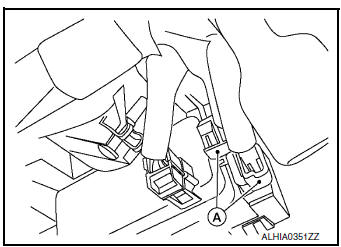

- Disconnect harness connectors (A).

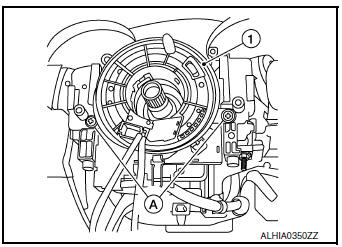

- Remove screws (A) and then remove spiral cable (1).

CAUTION:
- Do not strike or drop the spiral cable.
- Do not turn the spiral cable quickly or beyond the limit
number of turns (approximately 2.5 turns from the neutral
position), this may cause the cable to snap.
- Replace the spiral cable if it has been dropped or sustained
an impact.
- Do not disassemble the spiral cable.
- Do not allow oil, grease, detergent, or water to come in
contact with the spiral cable.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- The spiral cable may snap during steering operation if the
spiral cable is installed in an improper
position.
- Do not overturn the spiral cable or go beyond the maximum
number of turns allowed. This will cause
the cable to snap.

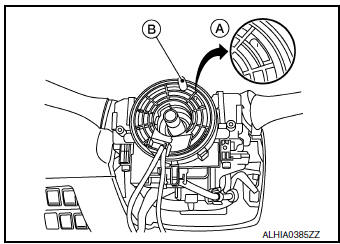

- The turn signal lever must be in the neutral position for
spiral cable installation.
- Do not apply lubricant to the spiral cable.
- Do not allow oil, grease, detergent or water to come in contact
with the spiral cable.
- After installation is complete, check that no system
malfunction is detected causing the air bag
warning lamp to illuminate.
- If a malfunction is indicated by the air bag warning lamp after
repair or replacement of the malfunctioning
parts, perform the SRS Final Check. Refer to SRC-18, "Trouble Diagnosis with
CONSULT
Exploded View
