Nissan Rogue Owners Manual: Air flow charts

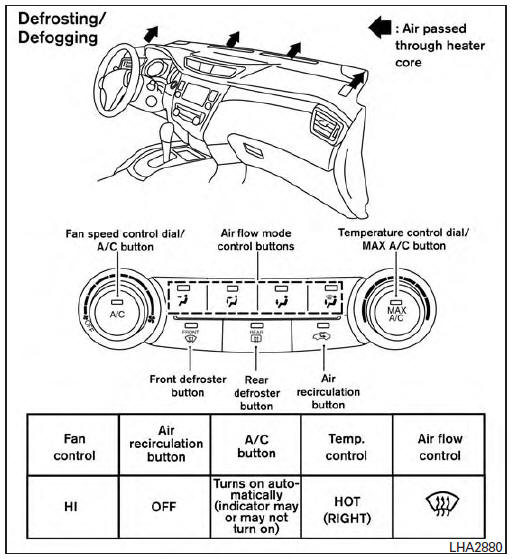

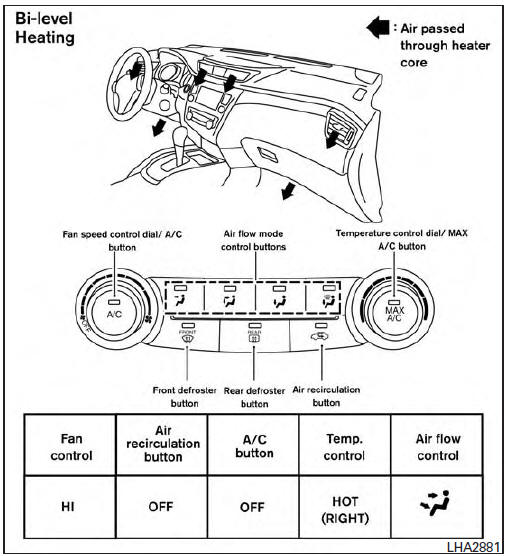

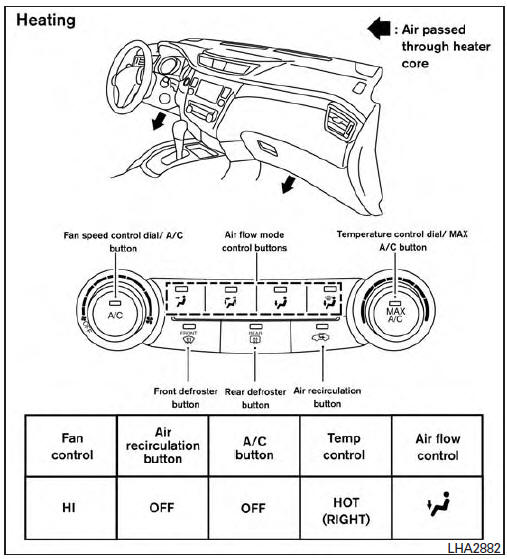

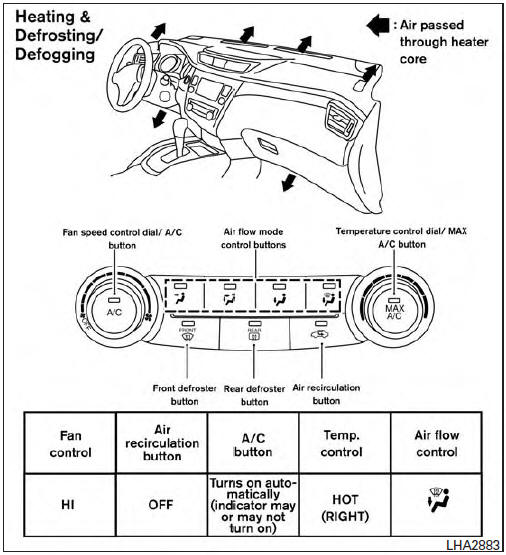

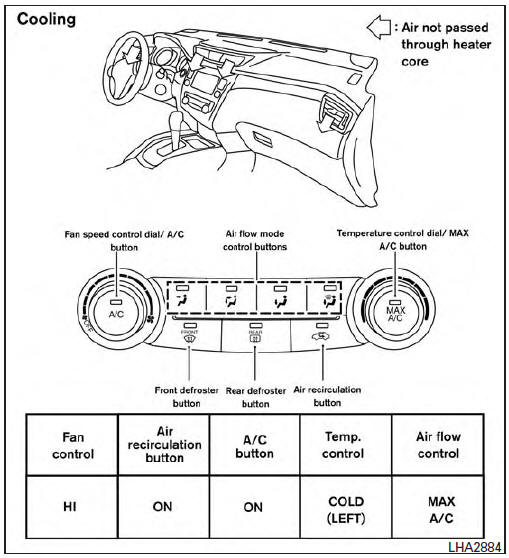

The following charts show the button and dial positions for MAXIMUM AND QUICK heating, cooling or defrosting. The air recirculation indicator should always be in the OFF position for heating and defrosting.
Air conditioner operation
Start the engine, turn the fan control dial to the
desired position, and press the
button to
activate the air conditioner. When the air conditioner
is on, cooling and dehumidifying functions
ar ...
Heater and Air Conditioner (automatic)
(if so equipped)
Heater and Air Conditioner
(front defroster) button
Temperature control dial (driver’s side) /
ON-OFF button
MODE (manual air flow control) button
Display screen
...
