Nissan Rogue Service Manual: Air cleaner filter

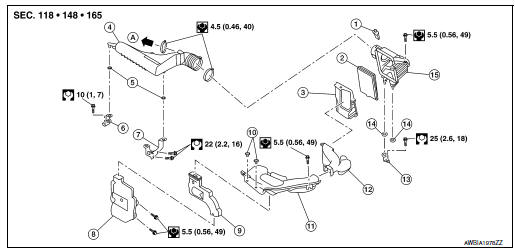

Exploded view
- Mass air flow sensor
- Air cleaner filter
- Air cleaner case (lower)
- Air duct assembly
- Grommet
- Resonator bracket (front)
- Resonator bracket (rear)
- Resonator
- Air duct
- Mounting clip
- Air duct assembly
- Air duct assembly
- Air cleaner bracket
- Grommet
- Air cleaner case (upper)
- To Electric throttle control actuator
Removal and installation
CHANGING THE AIR CLEANER FILTER
- Remove air duct assembly from air cleaner case (upper).
- Open the air cleaner case.
- Remove the air cleaner filter.
- Install a new air cleaner filter.
- Close the air cleaner case.
- Secure the air cleaner case clips.
INSPECTION AFTER REMOVAL
Examine the air cleaner filter for stains, clogging, or damage.
- Remove dirt and foreign objects (such as dead leaves) on air cleaner filter surface and inside cleaner case.
- If clogging or damage is observed, replace the air cleaner filter.
CAUTION: Do not clean the viscous paper type air cleaner filter by blowing as there is a risk of deterioration of its performance.
MAINTENANCE INTERVAL
Refer to MA-7, "Introduction of Periodic Maintenance".
Drive belts
Exploded view
Generator pulley
Water pump pulley
Drive belt auto-tensioner
Crankshaft pulley
A/C compressor pulley
Drive belt retainer boss
View A
&nbs ...
Spark plug
Exploded view
Ignition coil
Spark plug
Rocker cover
Removal and installation
REMOVAL
Remove air duct assembly.
Remove ignition coil. Refer to EM-36, "Ex ...
