Nissan Rogue Service Manual: Additional service when replacing TCM and transaxle assembly
Description
When replacing TCM and transaxle assembly simultaneously, perform the following work.
TCM PROGRAMMING
- Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.
CAUTION: When replacing TCM, save TCM data on CONSULT before removing TCM.
WRITING TCM DATA
- TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this reason, after replacing TCM and transaxle assembly, it is necessary to write new data in TCM.
Work Procedure
1.SAVE TCM DATA (VEHICLE SPECIFICATIONS)
With CONSULT
- Turn ignition switch OFF.
- Turn ignition switch ON.
- Select “Re/programming, Configuration”.
- Select “AT/CVT”.
NOTE: If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.
- Select “Programming”.
- Save TCM data on CONSULT according to the CONSULT display.
>> GO TO 2.
2.REPLACE TCM AND TRANSAXLE ASSEMBLY
- Turn ignition switch OFF and wait for 10 seconds.
- Replace TCM and transaxle assembly. Refer to TM-202, "Removal and Installation" (TCM), TM-220, "Removal and Installation" (Transaxle assembly).
>> GO TO 3.
3.WRITE TCM DATA (VEHICLE SPECIFICATIONS)
With CONSULT
- Select “Programming”.
- Perform programming according to the CONSULT display.
>> GO TO 4.

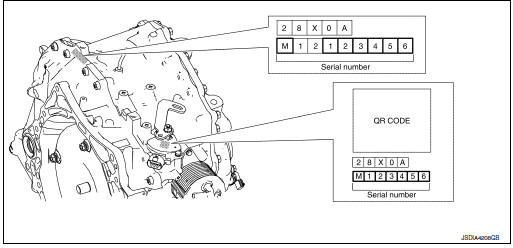

4.CHECK THE SERIAL NUMBER
Write down the serial number of new transaxle assembly.
>> GO TO 5.
5.WRITE TCM DATA (IP CHARACTERISTICS VALUE)
NOTE: Write data of new solenoid in TCM according to the following instructions:
With CONSULT
CAUTION: When the work is interrupted, obtain data again from the supplied CD.
- Shift the selector lever to the P position.
- Turn ignition switch OFF and wait for 10 seconds.
- Turn ignition switch ON.
- Insert the supplied CD into CONSULT.
- Select “Work Support” in “TRANSMISSION”.
- Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.
- Check that the serial number displayed on CONSULT screen and those written in the memo agree.
- Write data in TCM according to the instructions on the CONSULT screen.
NOTE: When writing is complete, the shift position indicator of the combination meter displays P.
>> WORK END
Additional service when replacing transaxle assembly
Description
Perform the following work after the transaxle assembly is replaced.
WRITING TCM DATA
TCM performs accurate control by retrieving data (inherent
characteristic value) of eac ...
CVT fluid cooler system
Cleaning
Whenever an automatic transaxle is repaired, overhauled, or replaced, the CVT
fluid cooler mounted in the
radiator must be inspected and cleaned.
Metal debris and friction material, if ...
