Nissan Rogue Service Manual: Wiring diagram

STARTING SYSTEM

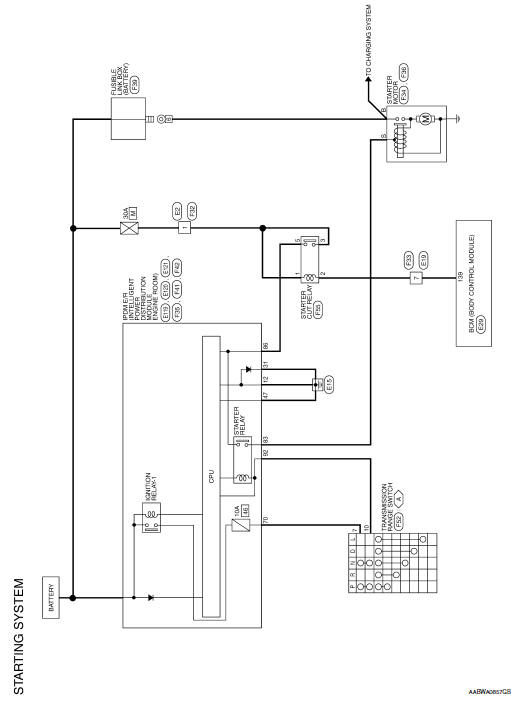

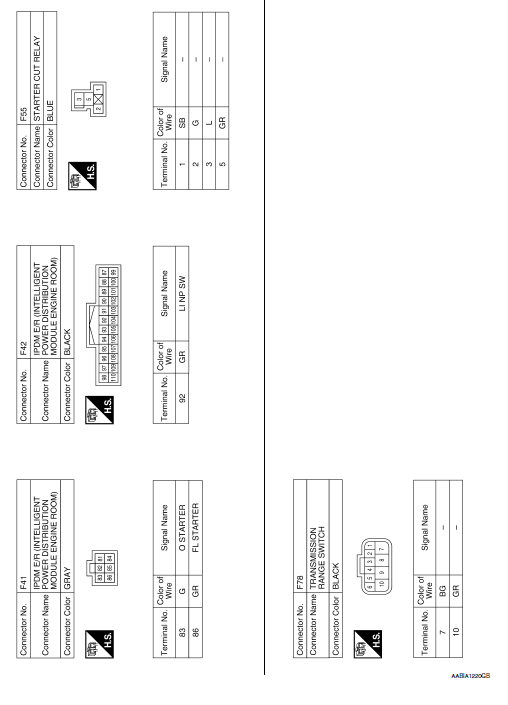

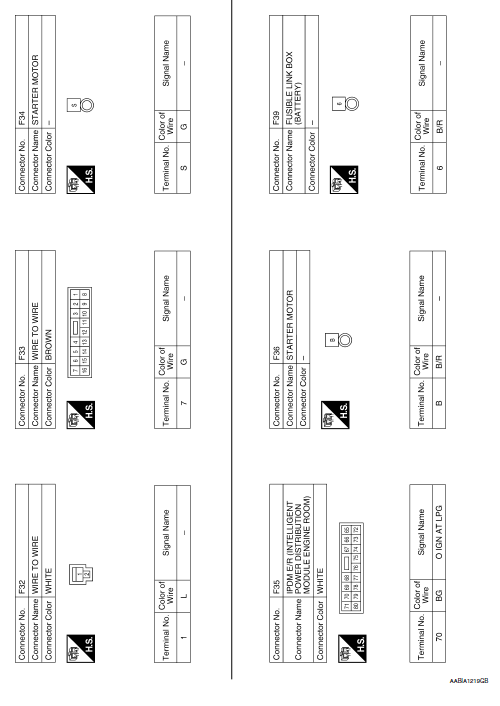

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram
