Nissan Rogue Service Manual: Wiring diagram

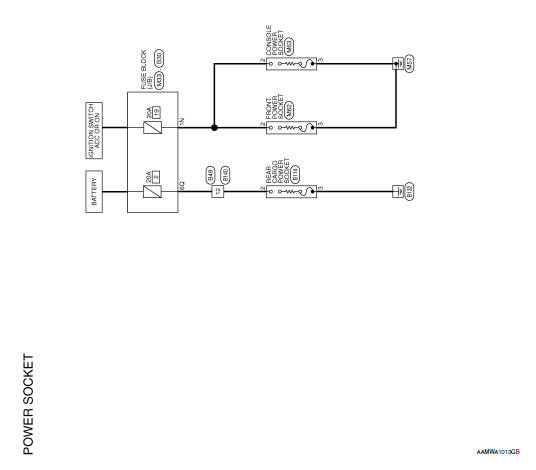

System description

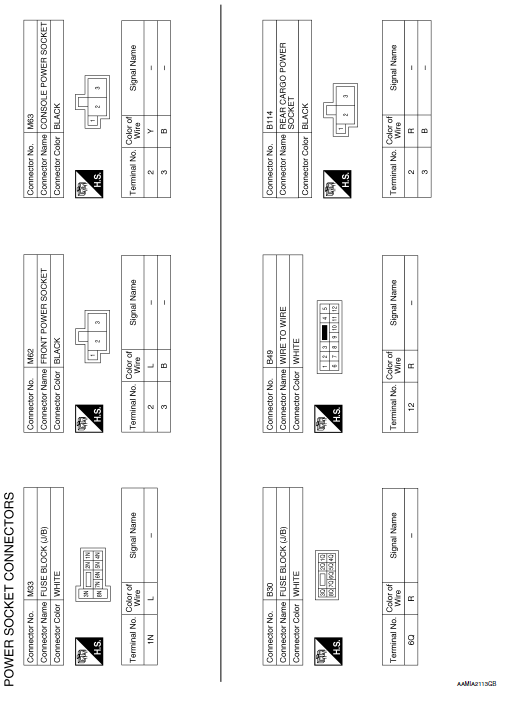

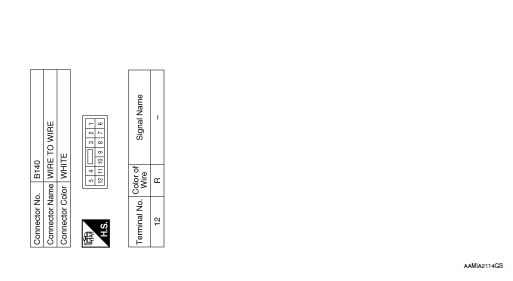

COMPONENT PARTS Component Parts Location Luggage side lower finisher RH Center console Cluster lid C  Rear cargo power socket Console power socket Front power socket ...

Removal and installation

POWER SOCKET Removal and Installation FRONT POWER SOCKET Removal  Remove cluster lid C. Refer to IP-21, "Removal and Installation".  Release the pawls on the power socket ...
