Nissan Rogue Owners Manual: Windshield wiper and washer switch

Nissan Rogue Owners Manual / Instruments and controls / Windshield wiper and washer switch

WARNING

In freezing temperatures the washer solution may freeze on the window and obscure your vision which may lead to an accident. Warm the window with the defroster before you wash the window.

CAUTION

Do not operate the washer continuously for more than 30 seconds.
Do not operate the washer if the reservoir tank is empty.
Do not fill the window washer reservoir with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir.
Pre-mix washer fluid concentrates with water to the manufacturer’s recommended levels before pouring the fluid into the window washer reservoir. Do not use the window washer reservoir to mix the washer fluid concentrate and water.

If the windshield wiper operation is interrupted by snow or ice, the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to the OFF position and remove the snow or ice that is on and around the wiper arms. In approximately 1 minute, turn the switch on again to operate the wiper.

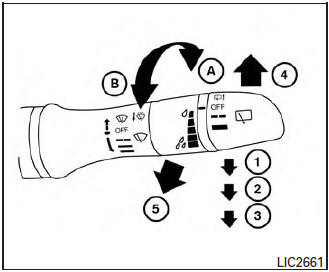

Switch operation

The windshield wiper and washer operates when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the following speed:

Intermittent (INT) — intermittent operation can be adjusted by turning the knob toward A (Slower) or B (Faster).
Low (LO)—continuous low speed operation
High (HI) — continuous high speed operation

Lift the lever up 4 to have one sweep operation (MIST) of the wiper.

Pull the lever toward you 5 to operate the washer. The wiper will also operate several times.
