Nissan Rogue Service Manual: Wheel and tire

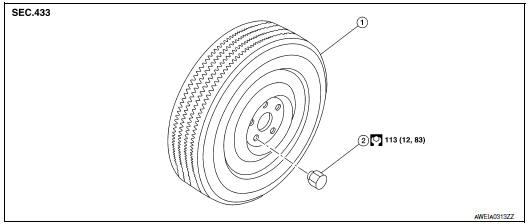

Exploded View
- Wheel and tire
- Wheel nut
Removal and Installation
REMOVAL
- Remove wheel nuts using power tool.
- Remove wheel and tire.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- When installing wheel nuts, tighten them diagonally by dividing the work two or three times in order to prevent the wheels from developing any distortion.
- Be careful not to tighten the wheel nuts to a torque exceeding specification to prevent strain on the disc brake rotor.
- Use Genuine NISSAN wheel nuts.
Tire pressure sensor
Exploded View
Tire pressure sensor
O-ring
Valve stem nut
Valve core
Valve cap
Valve stem assembly
: Parts that are replaced as a
set when the tire is replaced.
...
