Nissan Rogue Service Manual: Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name |
Description |
|
| — (J-39570) Chassis Ear |
|
Locating the noise |
| — (J-50397) NISSAN Squeak and Rattle Kit |
|
Repairing the cause of noise |
| — (J-46534) Trim Tool Set |
|
Removing trim components |
Commercial Service Tool
|
(TechMate No.) Tool name |
Description |
|
| (J-39565) Engine Ear |
|
Locating the noise |
CLIP LIST

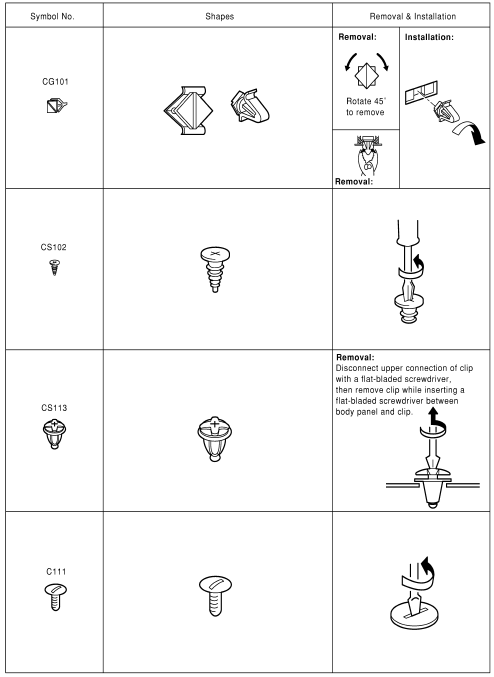

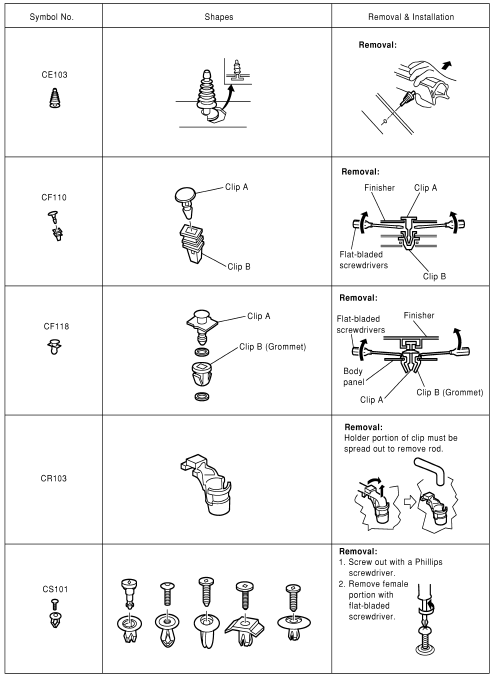

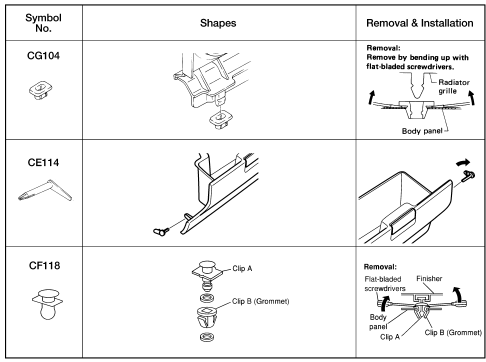

Descriptions for Clips
Replace any clips which are damaged during removal or installation.
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT
PRE-TENSIO ...
Symptom diagnosis
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Work Flow
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist
when the noise occurs. Use the Diagnostic
Workshee ...
