Nissan Rogue Service Manual: Wheel
Inspection
WHEEL
- Check tires for wear and improper inflation.
- Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout.
- Remove tire from wheel and mount wheel on a balancer machine.

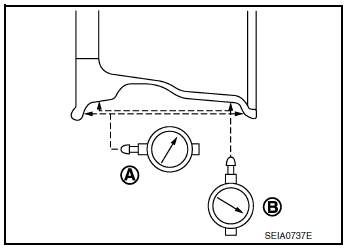

- Set dial indicator as shown.
- Check runout, if runout value exceeds the limit, replace wheel.
Limit
Axial Runout (A) Refer to WT-65, "Wheel".
Radial Runout (B) Refer to WT-65, "Wheel".
Wheel and tire
Adjustment
BALANCING WHEELS (ADHESIVE WEIGHT TYPE)
Preparation Before Adjustment
Remove inner and outer balance weights from the wheel. Using releasing agent,
remove double-faced adhesive
tape f ...
