Nissan Rogue Service Manual: Vanity mirror lamp

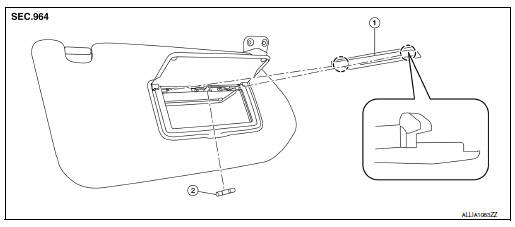

Exploded View
- Lens
- Bulb
Pawl
Removal and Installation
CAUTION: Do not attempt to separate the vanity lamp from the sun visor or damage to the components may occur. The vanity lamp is replaced as part of the sun visor. Refer to INT-29, "Exploded View".
Bulb or Lens Replacement
WARNING: Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.
- Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of lamp.
- Do not attempt to separate the vanity lamp from the sun visor or damage to the components may occur.
- Insert a suitable tool into the gap between the lens and vanity mirror lamp, then release the lens pawls and remove.
- Grasp the vanity mirror lamp bulb and pull straight out of the vanity mirror lamp to remove.
- Install vanity mirror lamp bulb to vanity mirror lamp.
- Install the vanity mirror lamp lens.
Map lamp assembly
Exploded View
Map lamp assembly bracket
(with moonroof)
Headlining
Map lamp assembly
Map lamp assembly bracket
(without moonroof)
Dual magnet
Metal clip
Pawl
Remov ...
Glove box lamp
Bulb Replacement
WARNING:
Do not touch the glass surface of a bulb while it is lit or right after being
turned OFF to prevent burns.
CAUTION:
Do not touch the glass of bulb directly b ...
