Nissan Rogue Service Manual: Map lamp assembly

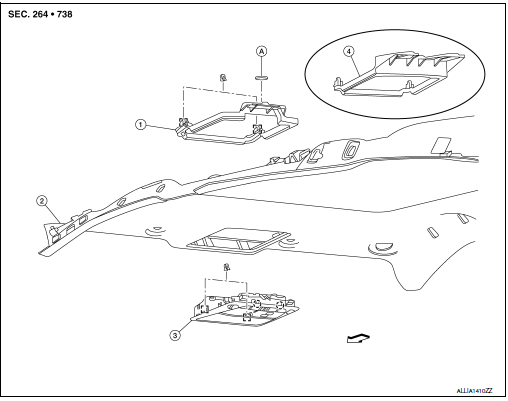

Exploded View
- Map lamp assembly bracket (with moonroof)
- Headlining
- Map lamp assembly
- Map lamp assembly bracket (without moonroof)
- Dual magnet
Metal clip
Pawl
Removal and Installation
REMOVAL

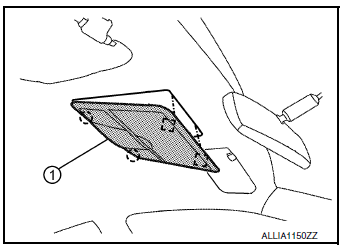

- Lower front edge of map lamp assembly (1) down from the
headlining by releasing the metals clips, then slide forward to
clear pawls at rear.: Metal clip
: Pawl
- Disconnect the harness connectors from map lamp assembly and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Visually check the metal clips and pawls for deformation and damage during installation. Replace if necessary.
Bulb Replacement
CAUTION: Do not attempt to separate LED bulbs from map lamp assembly or damage to the components may occur. The LED bulbs are replaced as part of the map lamp assembly. Refer to INL-55, "Removal and Installation"
Vanity mirror lamp
Exploded View
Lens
Bulb
Pawl
Removal and Installation
CAUTION:
Do not attempt to separate the vanity lamp from the sun visor or damage to the
components may
occur.
The vanity la ...
