Nissan Rogue Service Manual: Unit disassembly and assembly

FRONT COMBINATION LAMP

Exploded View

Exploded View

  1. Front combination lamp
  2. Turn signal lamp bulb socket

Disassembly and Assembly

DISASSEMBLY

  1.  Remove front combination lamp. Refer to EXL-268, "Removal and Installation".
  2.  Rotate the turn signal lamp bulb socket counterclockwise and remove.
  3.  Remove the turn signal lamp bulb from the bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

REAR COMBINATION LAMP

Exploded View

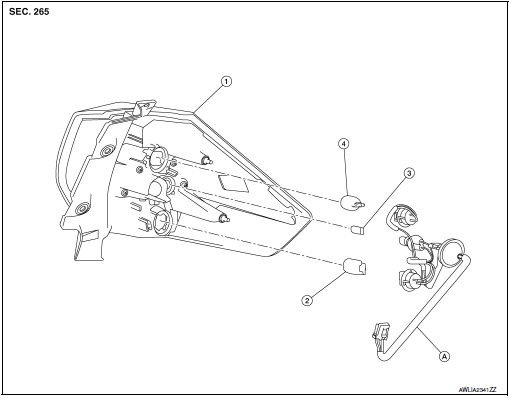

Exploded View

  1. Rear combination lamp
  2. Turn signal lamp bulb
  3.  Tail lamp bulb
  4.  Stop lamp bulb
  5. Rear combination lamp harness

Disassembly and Assembly

DISASSEMBLY

  1.  Remove rear combination lamp. Refer to EXL-278, "Removal and Installation".
  2.  Rotate the stop lamp bulb socket counterclockwise and remove.
  3.  Remove the stop lamp bulb from the bulb socket.
  4.  Rotate the tail lamp bulb socket counterclockwise and remove.
  5.  Remove the tail lamp bulb from the bulb socket.
  6.  Rotate the turn signal lamp bulb socket counterclockwise and remove.
  7.  Remove the turn signal lamp bulb from bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION: After installing, be sure to install the bulb sockets securely to ensure watertightness.

Removal and installation
FRONT COMBINATION LAMP Exploded View Front fender Front combination lamp Clip Removal and Installation REMOVAL  Remove front bumper fascia. Refer to EXT-17, "Removal a ...

Service data and specifications (SDS)
Bulb Specifications *: Always check with the Parts Department for the latest parts info. ...
