Nissan Rogue Service Manual: DTC/circuit diagnosis
DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/ CHANGEOVER SWITCH)
Component Inspection

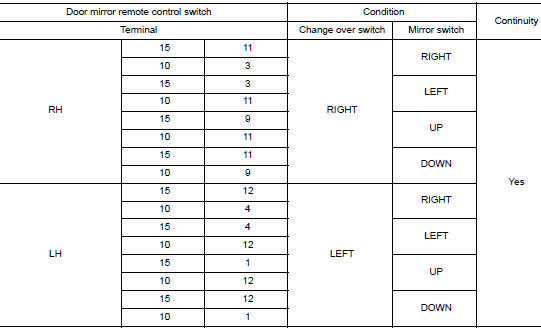

1.CHECK MIRROR SWITCH & CHANGEOVER SWITCH
- Turn ignition switch OFF.
- Disconnect door mirror remote control switch connector.
- Check door mirror remote control switch.
Is the inspection result normal? YES >> Inspection End.
NO >> Replace door mirror remote control switch. Refer to MIR-27, "Removal and Installation".
Door mirror
Wiring Diagram
...
Symptom diagnosis
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Work Flow
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist
when the noise occurs. Use the Diagnostic
Worksheet ...
