Nissan Rogue Service Manual: Removal and installation

FRONT COMBINATION LAMP

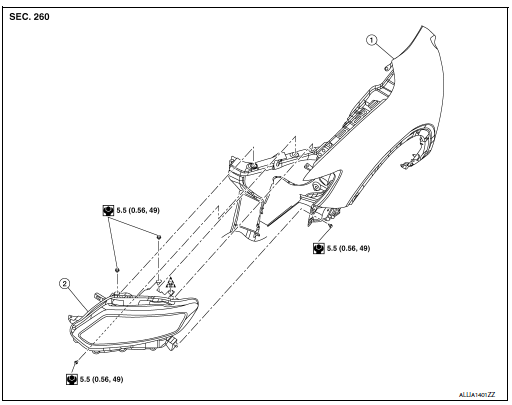

Exploded View

1. Front fender
2. Front combination lamp

Clip

Removal and Installation

REMOVAL

1.  Remove front bumper fascia. Refer to EXT-17, "Removal and Installation".
2.  Remove front combination lamp bolts and clip.
3.  Pull front combination lamp forward.
4.  Disconnect the harness connectors from the front combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE: After installation, perform headlamp aiming adjustment. Refer to EXL-114, "Inspection".

Bulb Replacement

HEADLAMP (LOW BEAM) BULB

The headlamp (low beam) bulb is not serviced separately. Refer to EXL-119, "Removal and Installation".

HEADLAMP (HIGH BEAM) BULB

The headlamp (high beam) bulb is not serviced separately. Refer to EXL-119, "Removal and Installation".

PARKING (SIDE MARKER) LAMP BULB

The parking lamp (side marker) bulb is not serviced separately. Refer to EXL-119, "Removal and Installation".

TURN SIGNAL LAMP BULB

Removal

1.  Rotate bulb socket counterclockwise and remove from the front combination lamp.
2.  Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install the bulb socket securely for watertightness.

HEIGHT SENSOR

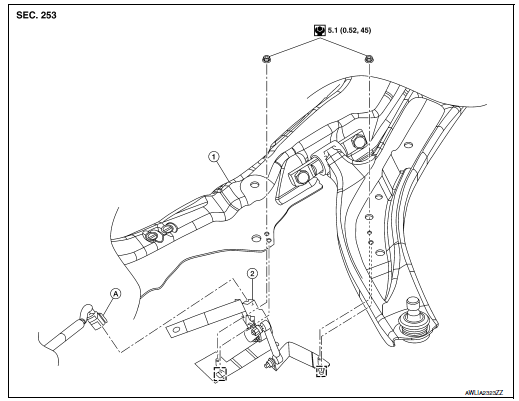

Exploded View

1. Front suspension member
2. Front height sensor
3. Harness connector

Locator

Removal and Installation - Front Height Sensor

REMOVAL

1.  Disconnect the harness connector from the front height sensor.
2.  Remove the nuts and the front height sensor.

INSTALLATION

Installation is in the reverse order of removal.

After installation, perform height sensor initialization. Refer to EXL-222, "SENSOR INITIALIZE : Description".

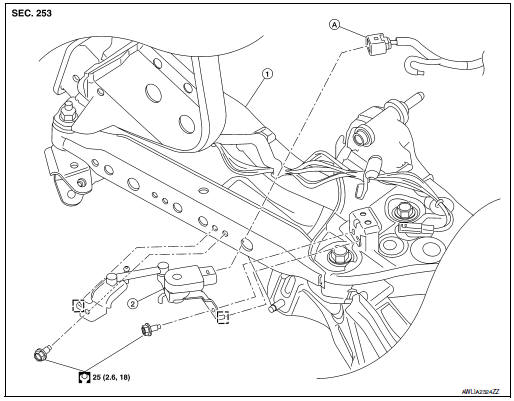

Exploded View

1. Rear suspension member
2. Rear height sensor
1. Harness connector

Locator

Removal and Installation - Rear Height Sensor

REMOVAL

1.  Disconnect the harness connector from the rear height sensor.
2.  Remove the bolts and rear height sensor.

INSTALLATION

Installation is in the reverse order of removal.

After installation, perform height sensor initialization. Refer to EXL-222, "SENSOR INITIALIZE : Description".

FOG LAMP

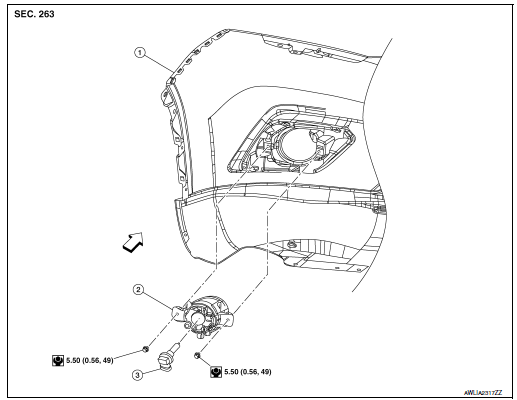

Exploded View

1. Front bumper fascia
2. Fog lamp
3. Fog lamp bulb

Front

Removal and Installation

REMOVAL

1.  Partially remove front fender protector. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
2.  Disconnect the harness connector from the fog lamp.
3.  Remove fog lamp bolts and fog lamp.

INSTALLATION

Installation in the reverse order of removal.

NOTE: After installation, perform fog lamp aiming adjustment. Refer to EXL-117, "Aiming Adjustment Procedure".

Bulb Replacement

WARNING: Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

•  Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
•  Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

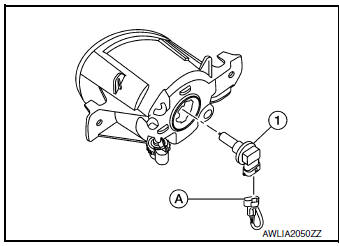

REMOVAL

1.  Partially remove front fender protector. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
2.  Disconnect the harness connector from the fog lamp (A).
3.  Rotate bulb (1) counterclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install the bulb socket securely for watertightness.

OPTICAL SENSOR

Removal and Installation

REMOVAL

1.  Release the optical sensor (2) from defroster grille (1) using a suitable tool.
2.  Disconnect the harness connector (A) from the optical sensor (2) and remove.

INSTALLATION

Installation is in the reverse order of removal.

COMBINATION SWITCH

Exploded View

1. Combination switch
2. Steering column
1. Screw

Front

Removal and Installation

REMOVAL

1.  Remove the steering angle sensor. Refer to BRC-139, "Removal and Installation".
2.  Disconnect harness connector from combination switch.

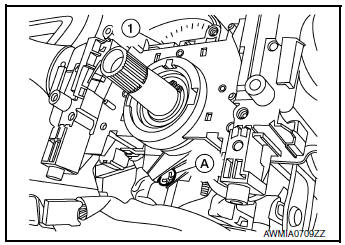

3.  Remove screw (A) and combination switch (1).

INSTALLATION

Installation is in the reverse order of removal.

HAZARD SWITCH

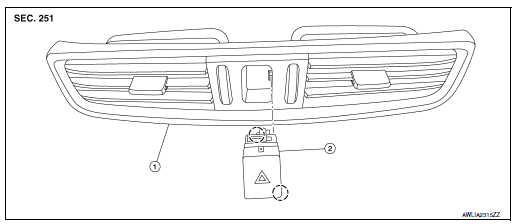

Exploded View

1. Center ventilator grille
2. Hazard switch

Pawl

Removal and Installation

REMOVAL

1.  Remove center ventilator grille. Refer to VTL-13, "CENTER VENTILATOR GRILLE : Removal and Installation".
2.  Release the pawls and remove the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

SIDE TURN SIGNAL LAMP

Removal and Installation

REMOVAL

1.  Remove door mirror rear finisher. Refer to MIR-25, "Removal and Installation".
2.  Remove door mirror glass. Refer to MIR-24, "Removal and Installation".

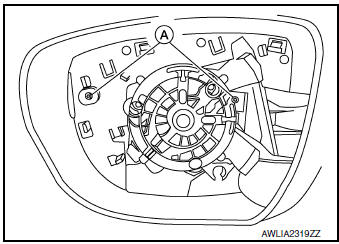

3.  Remove the screws (A) and reposition side turn signal lamp.

4. Disconnect the harness connector from the side turn signal lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

The side turn signal lamp bulb is not serviced separately. Refer to EXL-126, "Removal and Installation".

REAR COMBINATION LAMP

Exploded View

1. Rear combination lamp
1. Grommet
2. Clip

Removal and Installation

REMOVAL

1.  Remove side air spoiler. Refer to EXT-48, "Removal and Installation".
2.  Remove rear combination lamp bolts.
3.  Pull rear combination lamp rearward to release from clip and locators.
4.  Disconnect the harness connector from the rear combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

WARNING: Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

•  Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
•  Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP LAMP BULB

Removal

1.  Remove rear combination lamp. Refer to EXL-127, "Removal and Installation".
2.  Rotate stop lamp bulb socket counterclockwise and remove.
3.  Remove stop lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install bulb socket securely for watertightness.

TAIL LAMP BULB

Removal

1.  Remove rear combination lamp. Refer to EXL-127, "Removal and Installation".
2.  Rotate tail lamp bulb socket counterclockwise and remove.
3.  Remove tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install bulb socket securely for watertightness.

TURN SIGNAL LAMP BULB

Removal

1.  Remove rear combination lamp. Refer to EXL-127, "Removal and Installation".
2.  Rotate turn signal lamp bulb socket counterclockwise and remove.
3.  Remove turn signal lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install bulb socket securely for watertightness.

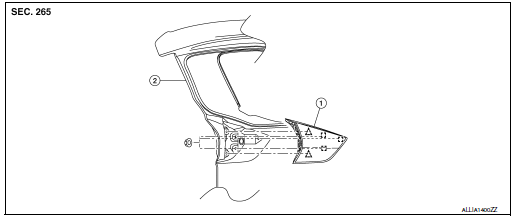

HIGH-MOUNTED STOP LAMP

Exploded View

1. High-mounted stop lamp
2.  Back door

  Stud

Removal and Installation

REMOVAL

1.  Remove access cover using a suitable tool. Refer to INT-38, "Exploded View".
2.  Remove high-mounted stop lamp nuts.
3.  Disconnect the harness connector from high-mounted stop lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is not serviced separately. Refer to EXL-129, "Removal and Installation".

BACK-UP LAMP ASSEMBLY

Exploded View

1. Back-up lamp assembly
2.  Back door

Clip
Stud

Removal and Installation

REMOVAL

1.  Remove back door finisher. Refer to INT-38, "Removal and Installation".
2.  Remove back-up lamp assembly nuts.
3.  Pull back-up lamp assembly rearward, disconnect the harness connector and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

WARNING: Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.

CAUTION:

•  Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
•  Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

Removal

1.  Remove back-up lamp assembly. Refer to EXL-130, "Removal and Installation".
2.  Rotate tail lamp bulb socket counterclockwise and remove.
3.  Remove tail lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install bulb socket securely for watertightness.

BACK-UP LAMP BULB

Removal

1. Remove back-up lamp assembly. Refer to EXL-130, "Removal and Installation".
2.  Rotate back-up lamp bulb socket counterclockwise and remove.
3.  Remove back-up lamp bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install bulb socket securely for watertightness.

LICENSE PLATE LAMP

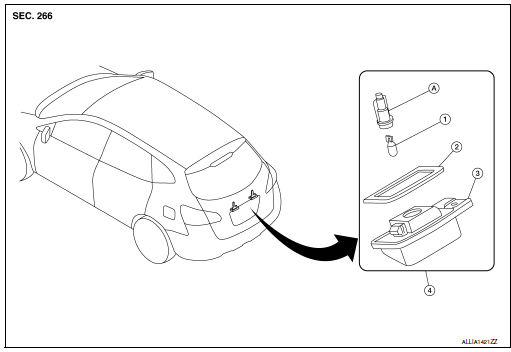

Exploded View

1. License plate lamp bulb
2. License plate lamp seal
3.  License plate lamp
4.  License plate lamp assembly
1. License plate lamp bulb socket

Removal and Installation

REMOVAL

1.  Release the license lamp finisher. Refer to EXT-50, "Exploded View".

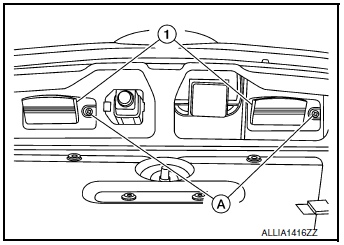

2.  Remove the screw (A) (LH or RH) and pull license plate lamp (1) (LH or RH) rearward.

3. Disconnect the harness connector from the license plate lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

WARNING: Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

•  Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
•  Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1.  Remove license plate lamp. Refer to EXL-283, "Removal and Installation".
2.  Rotate license plate lamp bulb socket counterclockwise and remove.
3.  Remove license plate lamp bulb from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: After installing the bulb, install the bulb socket securely for watertightness.
