Nissan Rogue Service Manual: Service data and specifications (SDS)

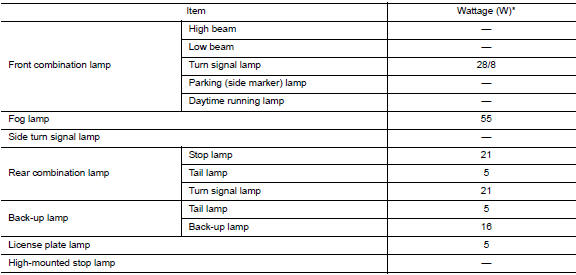

Bulb Specifications
*: Always check with the Parts Department for the latest parts info.
Unit disassembly and assembly
FRONT COMBINATION LAMP
Exploded View
Front combination lamp
Turn signal lamp bulb socket
Disassembly and Assembly
DISASSEMBLY
Remove front combination lamp. Refer to EXL-268, ...
