Nissan Rogue Service Manual: Tightening Torque Table (New Standard Included)
CAUTION:
- The special parts are excluded.
- The bolts/nuts in these tables have a strength (discrimination) number/symbol assigned to the head or the like. As to the relation between the strength grade in these tables and the strength (discrimination) number/symbol, refer to “DISCRIMINATION OF BOLTS AND NUTS”.

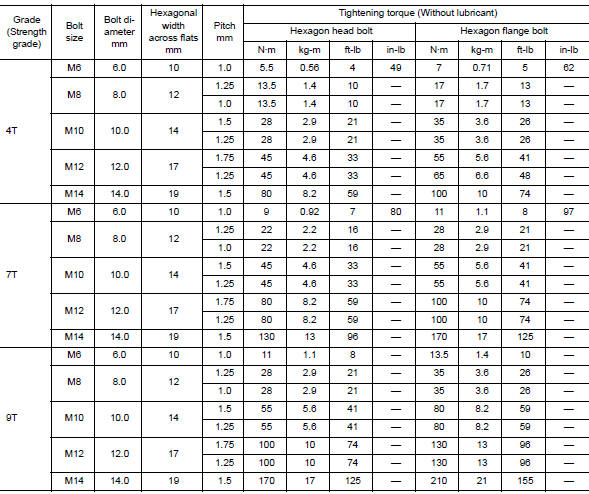

PREVIOUS STANDARD
CAUTION: The parts with aluminum or the cast iron washer surface/thread surface are excluded.

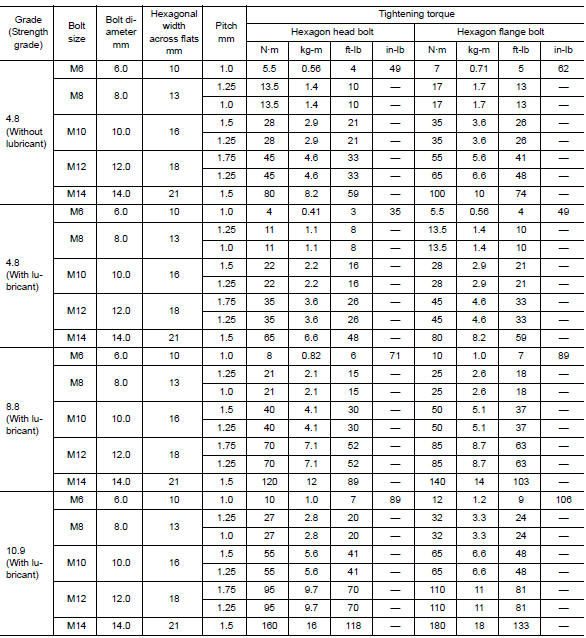

NEW STANDARD BASED ON ISO
CAUTION:
- Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coefficient stabilizer is applied to the new standard bolts/nuts.
- However, use tightening torque without lubricant for the following cases. Friction coefficient stabilizer is not applied to the following bolts/nuts.
- Grade 4.8, M6 size bolt, Conical spring washer installed
- Paint removing nut (Size M6 and M8) for fixing with weld bolt

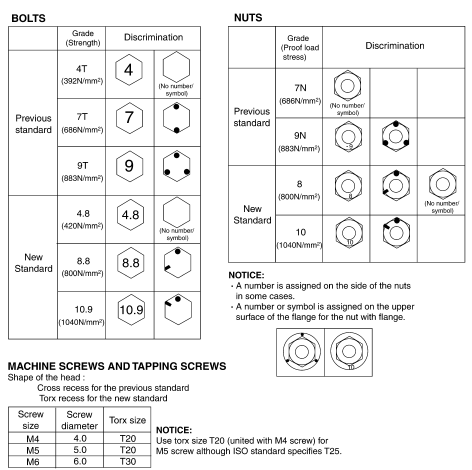

DISCRIMINATION OF BOLTS AND NUTS
Tightening torque of standard
bolts
Description
This vehicle has both new standard based on ISO* and previous standard
bolts/nuts. There are some differences
between these two types of bolts/ nuts; shape of the head, grade of stren ...
