Nissan Rogue Service Manual: Third row seat belt

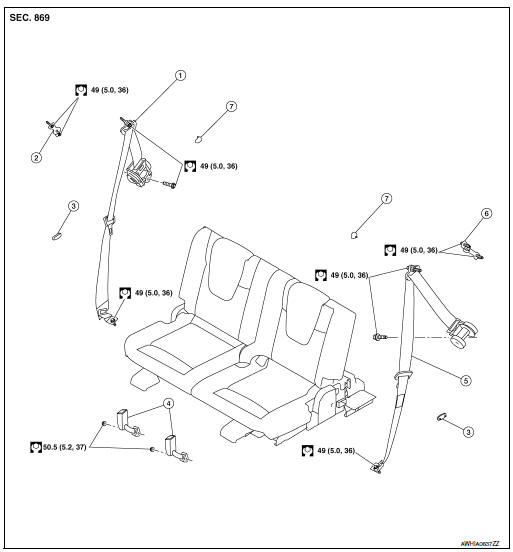

Exploded View
- Seat belt retractor (RH)
- eat belt D-ring bracket (RH)
- Seat belt hook (LH/RH)
- Seat belt buckle (LH/RH)
- Seat belt retractor (LH)
- Seat belt D-ring bracket (LH)
- Seat belt D-ring bolt cover (LH/ RH)
SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : Removal and Installation
REMOVAL
- Remove luggage side upper finisher. Refer to INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation".
- Pull third row seat striker release straps and raise third row seat.

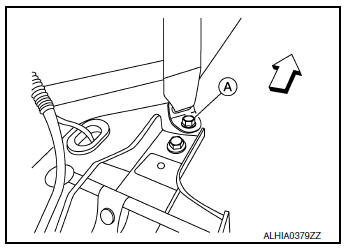

- Remove lower anchor bolt (A).
: Front

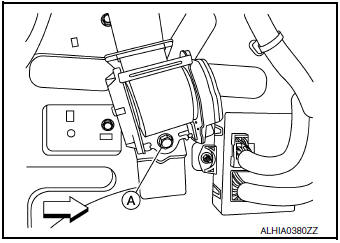

- Remove seat belt retractor bolt (A) and remove the seat belt retractor (1).
: Front
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer to SB-17, "Exploded View".
- Make sure the D-ring anchor operates freely.
- Always perform an inspection after repair to make sure the
system is functioning within specifications.
Refer to SB-5, "Inspection".
SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation
REMOVAL
- Pull third row seat striker release straps and raise third row seat.

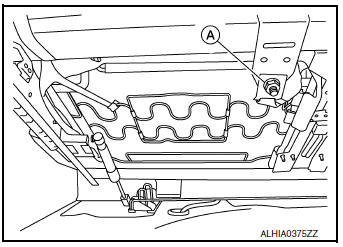

- Remove seat belt buckle anchor nut (A) (LH), then route seat belt buckle through seat cushion and trim and remove.
INSTALLATION
Installation is in the reverse order of removal.
Latch (lower anchors and tether for children) system
Removal and Installation
The LATCH (Lower Anchors and Tether for CHildren) system is not serviceable.
Top tether strap child restraint
Removal and Installation
The Top Tether Strap Child Restraint system is not serviceable.
